X431 Smartlink C 2.0 Heavy Duty Truck Diagnostic Test & Measurement Tools Code Readers Scan Tools X431 HD Module Works for X431
X431 Smartlink V 2.0
X431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Test & Measurement Tools Code Readers Scan Tools X431 HD Module Works for X431 V+, X431 PRO3, X-431 PRO3S Series.
Features:

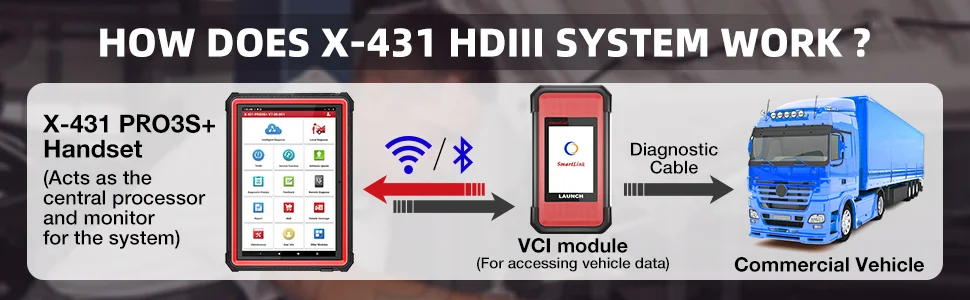

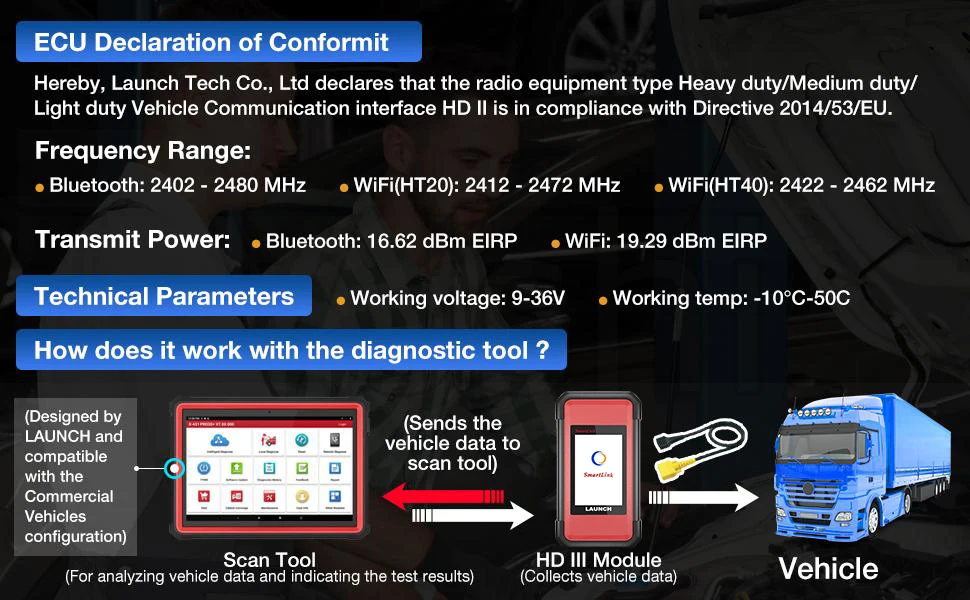

Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device
Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.
Product introduction:

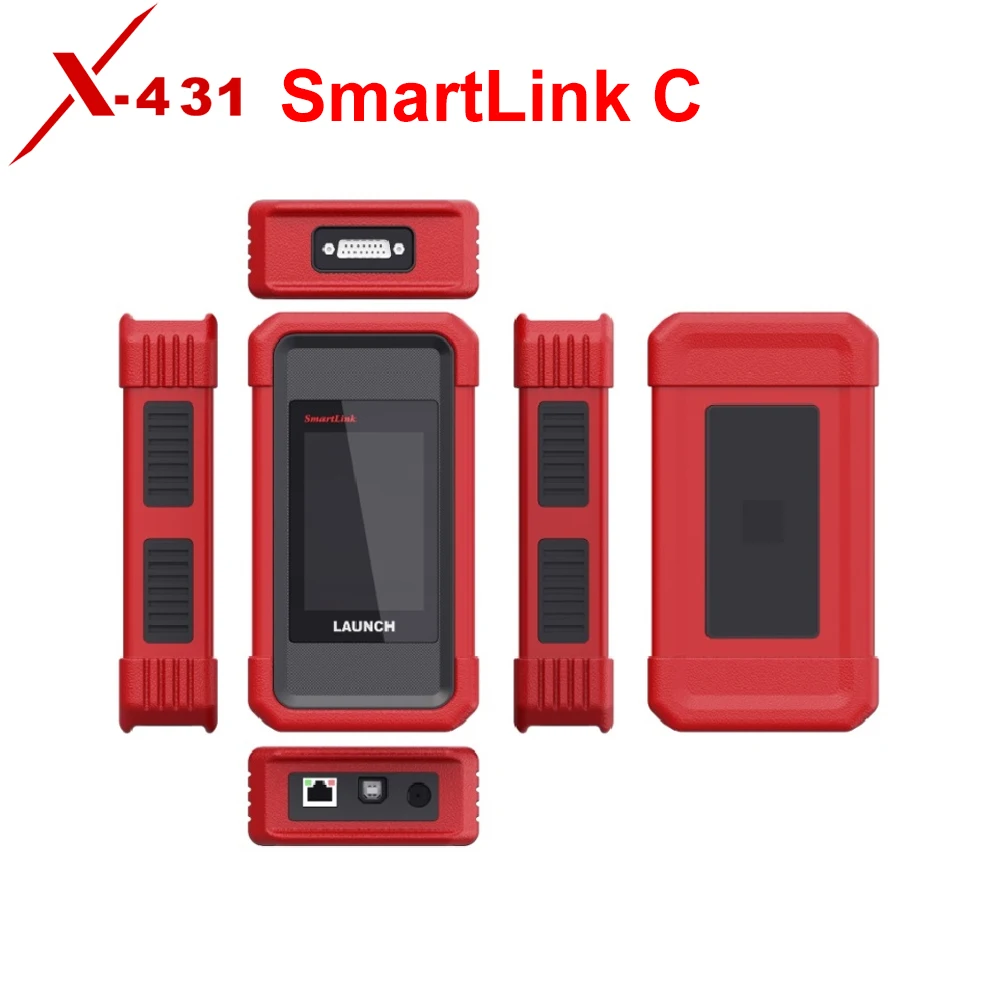

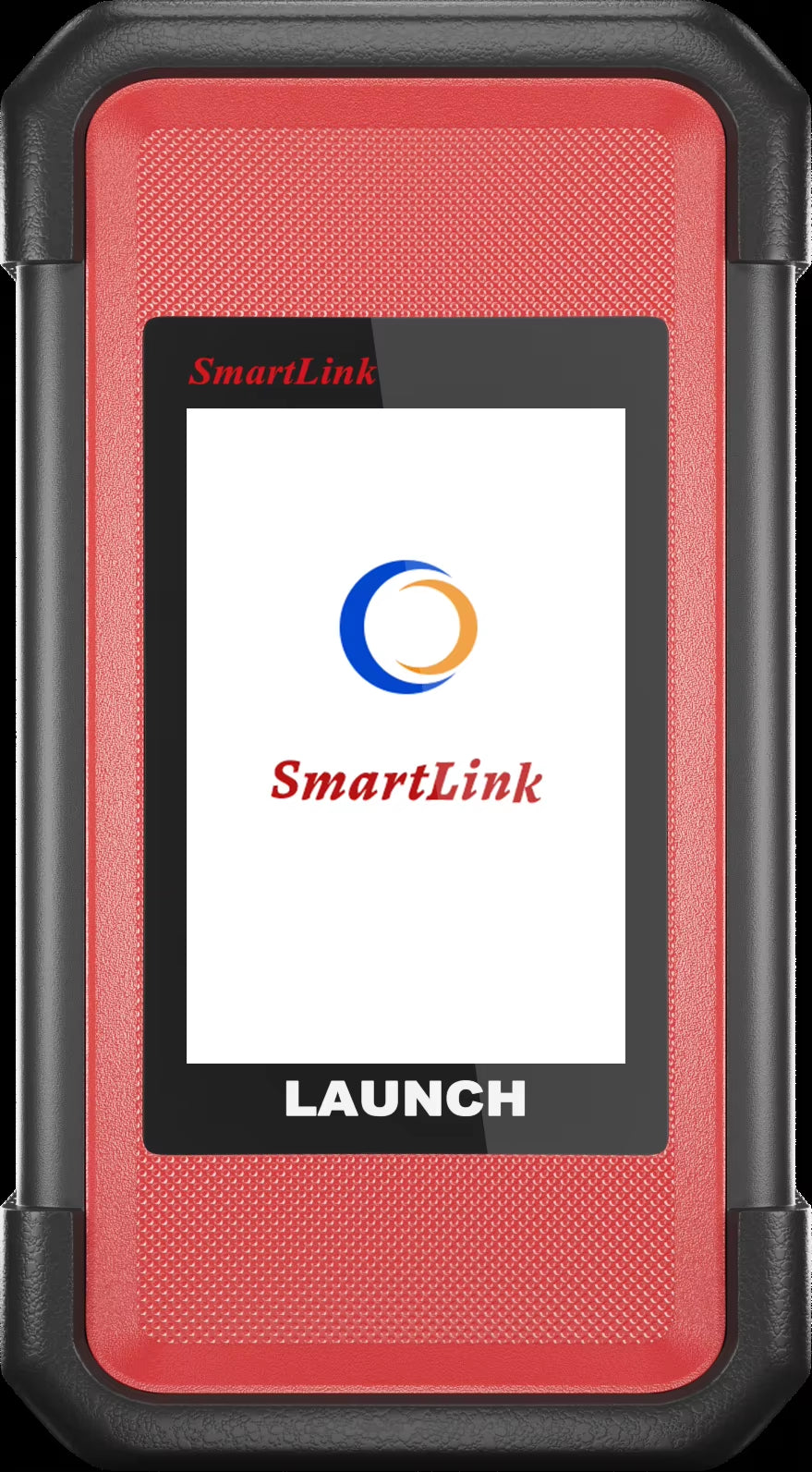

X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module based on Linux system developed by Launch Company. It has dual processors Cortex-A7+Cortex-M7, 8G RAM, 256M storage, and 320*480 resolution. Supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 series. Supports system-wide fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action testing.
Covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. Supports various types of vehicle software such as trucks, buses, construction machinery, agricultural machinery, trailers, ships, etc.
Comprehensive upgrade of diagnostic box

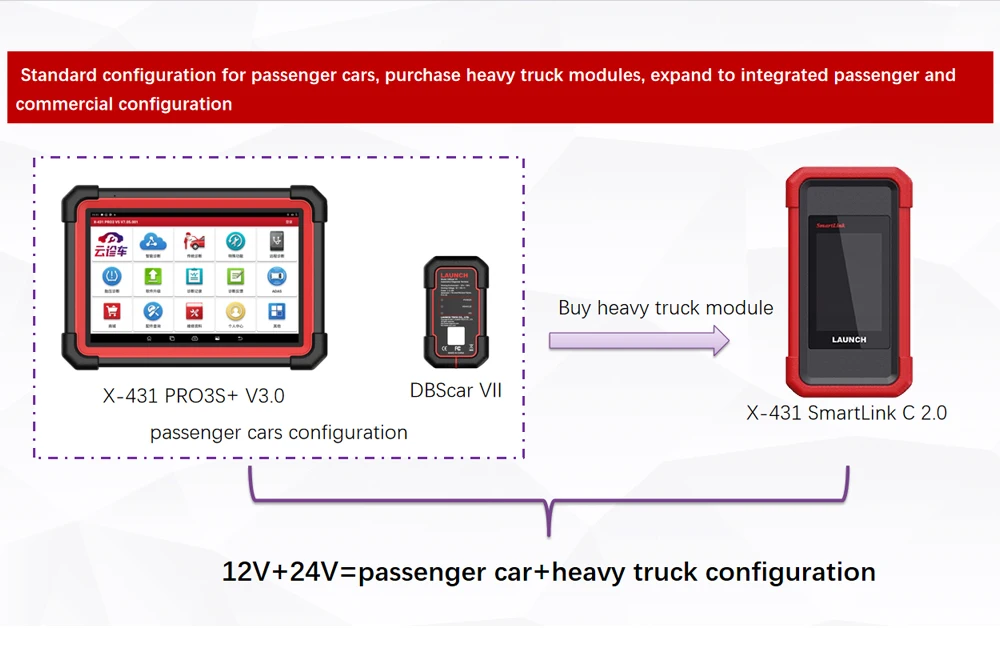

The heavy truck module is used to expand the configuration of passenger cars equipped with DBScar lower units into integrated passenger and commercial configurations, mainly supporting commercial vehicles.

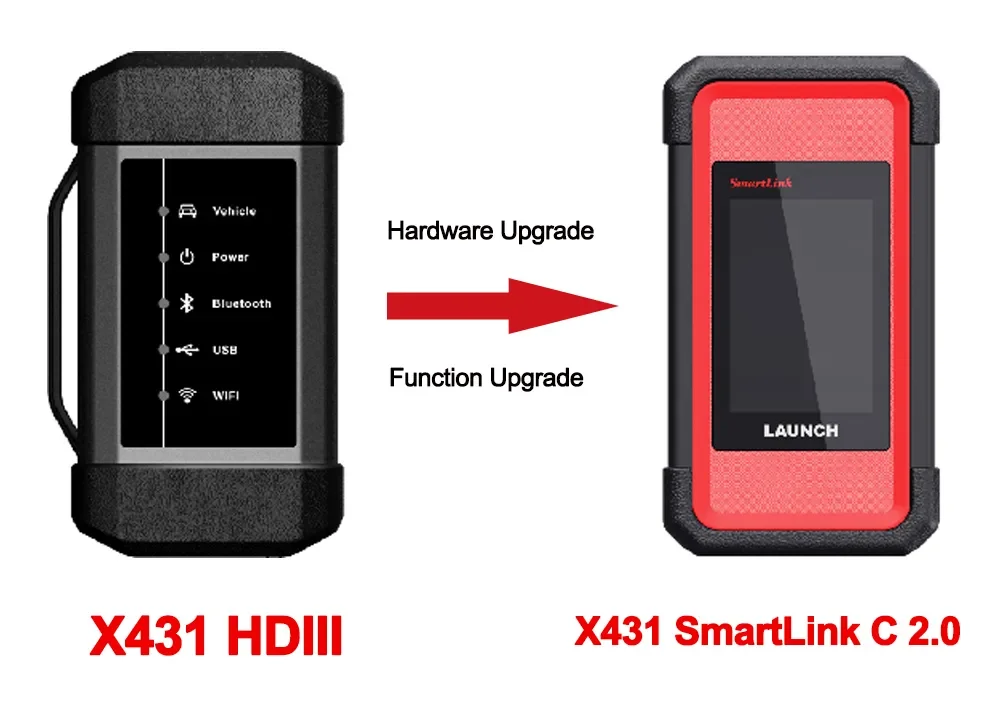

Upgraded from X-431 HDIII to SmartLink C 2.0, the function is more powerful. The transmission speed is faster and the transmission is more stable; the visual operation interface makes it more convenient; it supports commercial vehicles, passenger cars, new energy and other models; it supports super remote diagnosis
works with the X431 series:
1.X431 Pro3s+
2.X431 X431 V+
3.X431 Pro3 ACE
4. X431 Pro3s+ V5.0
5. X431 ....
if you have the X431 Pro3s+ scanner, it supports the 24V Heavy truck module expansion，you can buy a X431 smartlink truck connector to Diagnosing and repairing 24V trucks.
Heavy Duty Software List：
for Renault Heavy Vehicle
for IRIZAR heavy duty vehicle
for IRISBUS heavy duty truck
for Yutong Bus
for Mercedes Benz Heavy Duty Truck
for VOLVO heavy duty vehicle
for ISUZU heavy duty vehicle
for IVECO heavy duty truck
for BREMACH
for IRISBUS
for CREDO
for KNORR ABS
for ..........
Total 88 softwares
Product parameters:
CPU: Dual processor Cortex-A7+Cortex-M7
Operating system: Linux
Resolution: 320x480
Power consumption: < 6w
Storage: 8GB
Memory: 256M
Working temperature: 0℃~50℃
Working voltage: 9V DC—36V DC
Dimensions: 200mm×110mm×47mm
Communication method: WIFI/Bluetooth/Ethernet

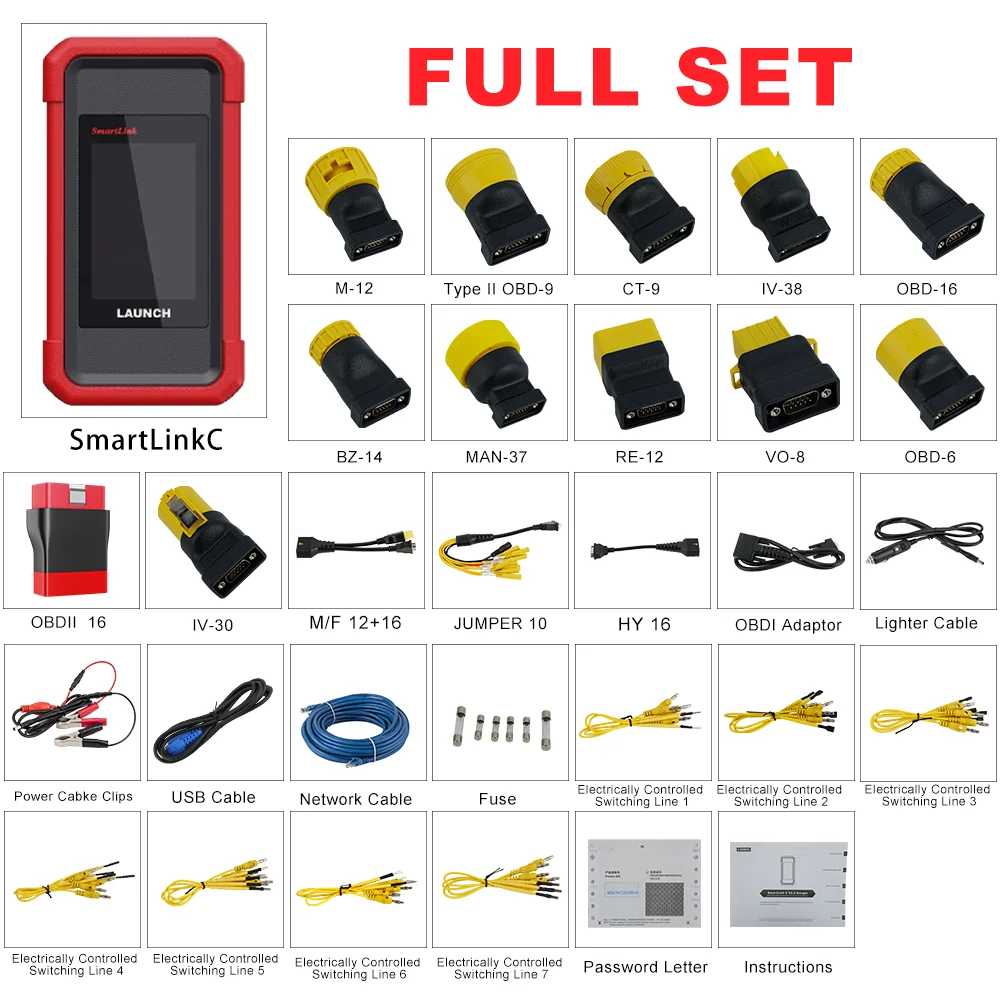

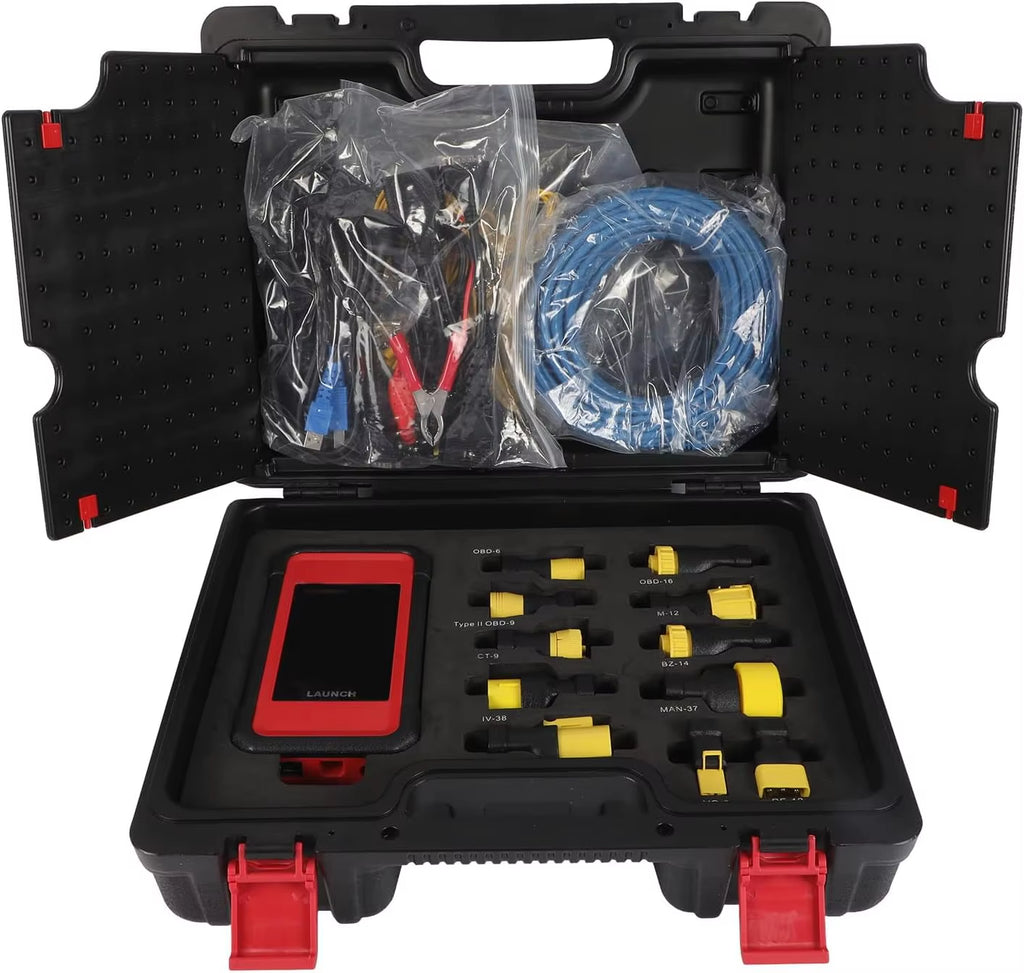

Package Includes:
1pcs x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pcs x HD15F to OBDII 16 male integrated test connector, RoHS
1pcs x DB15F to HD15F test main line (without DC), L=1000mm, RoHS
1pcs x Double clamp power cord (English, without LAUNCH), RoHS
1pcs x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pcs x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pcs x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pcs x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS

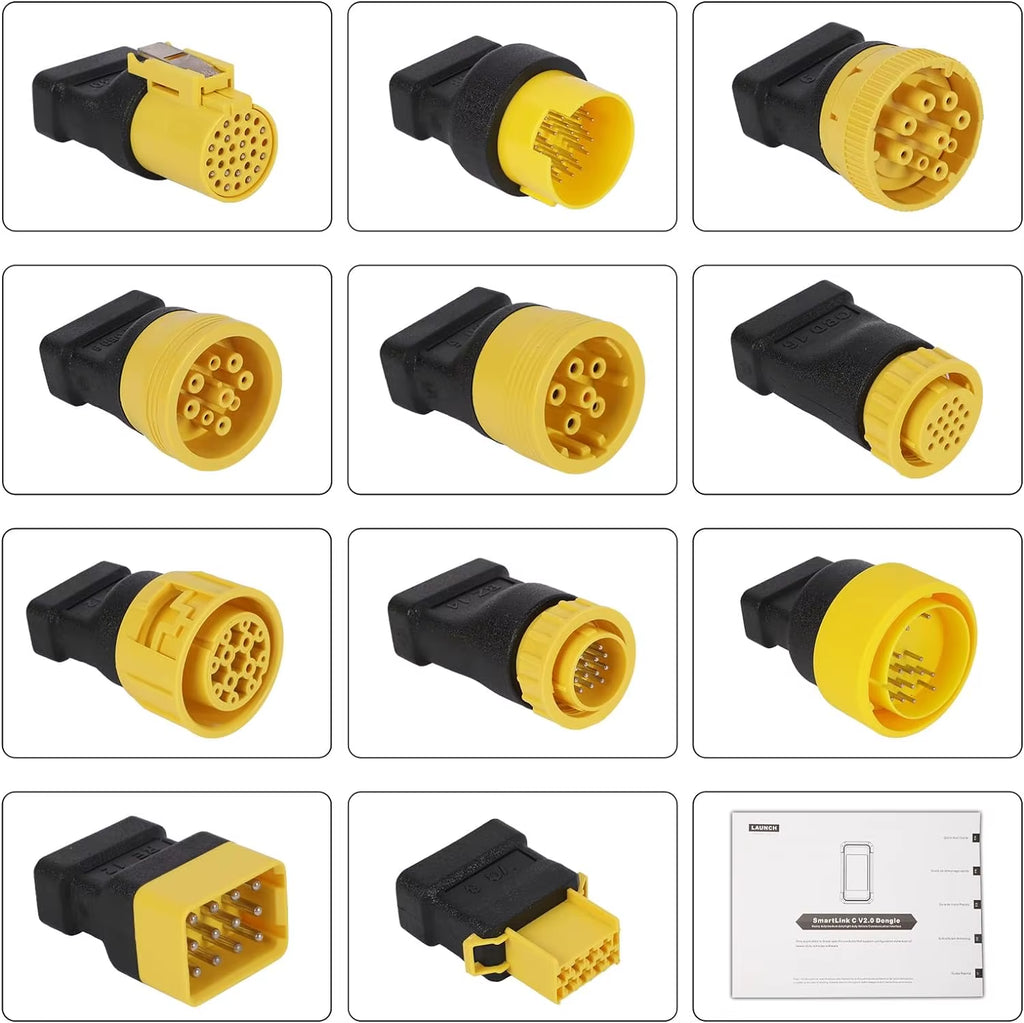

1pcs x X431 PAD4HDB15M-For CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS

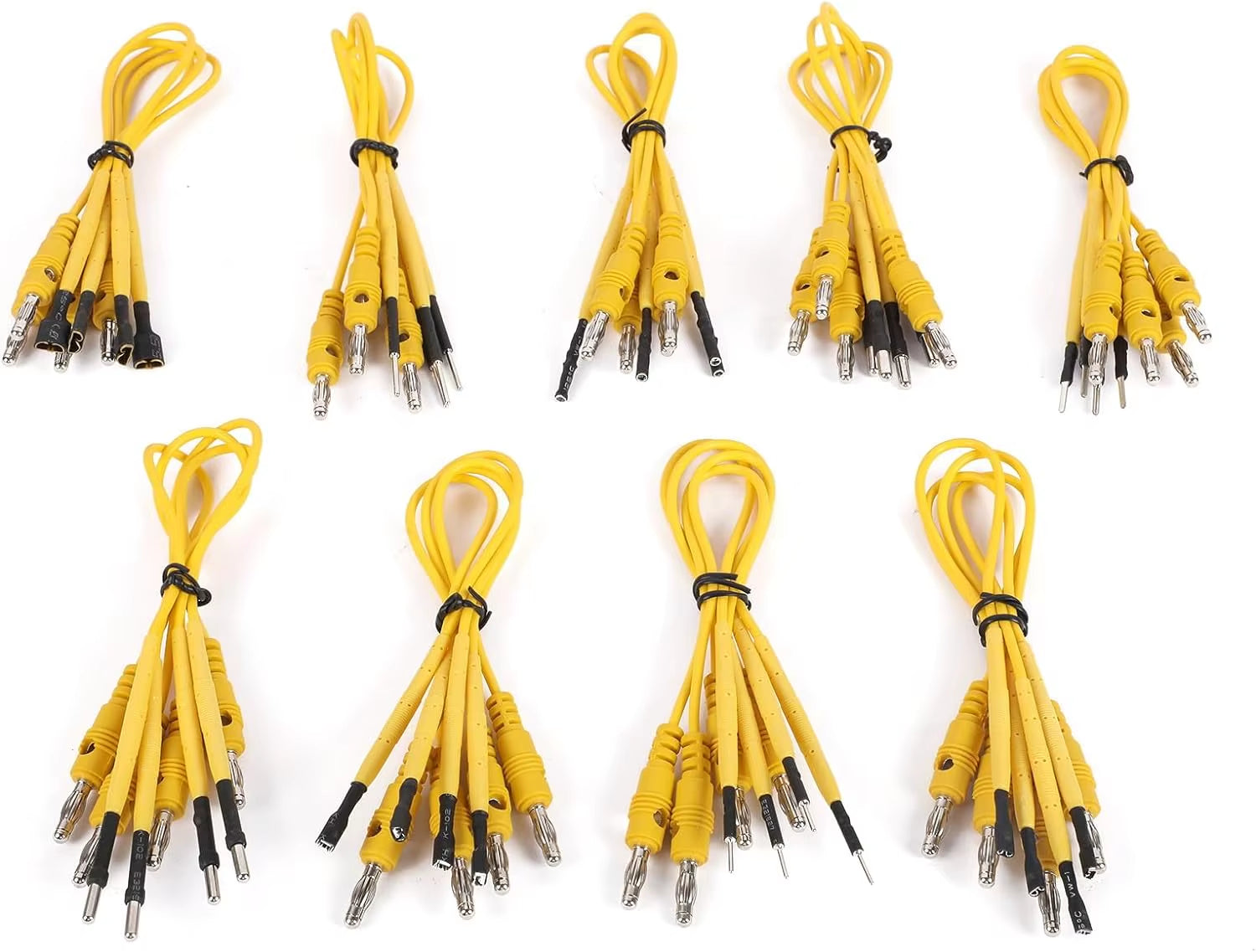

4pcs x X-431 PAD IV electric control adapter cable 1,
4pcs x X-431 PAD IV electric control adapter cable 2,
4pcs x X-431 PAD IV electric control adapter cable 3,
4pcs x X-431 PAD IV electric control adapter cable 4,
4pcs x X-431 PAD IV electric control adapter cable 5,
4pcs x X-431 PAD IV electric control adapter cable 6,
4pcs x X-431 PAD IV electric control adapter cable 7,
4pcs x X-431 PAD IV electric control adapter cable 8,
4pcs x X-431 PAD IV electric control adapter cable 9,
1pcs xUniversal password envelope (without LAUNCH),
1pcs xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start,
