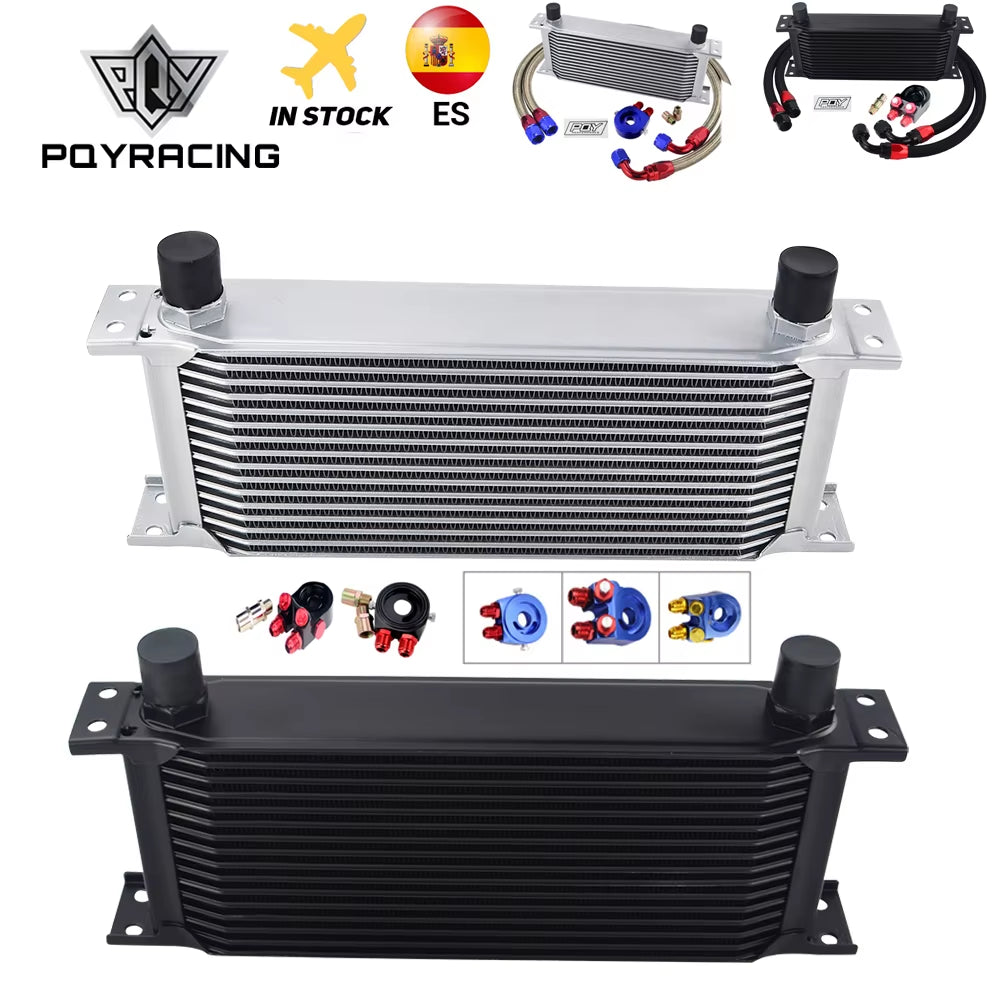

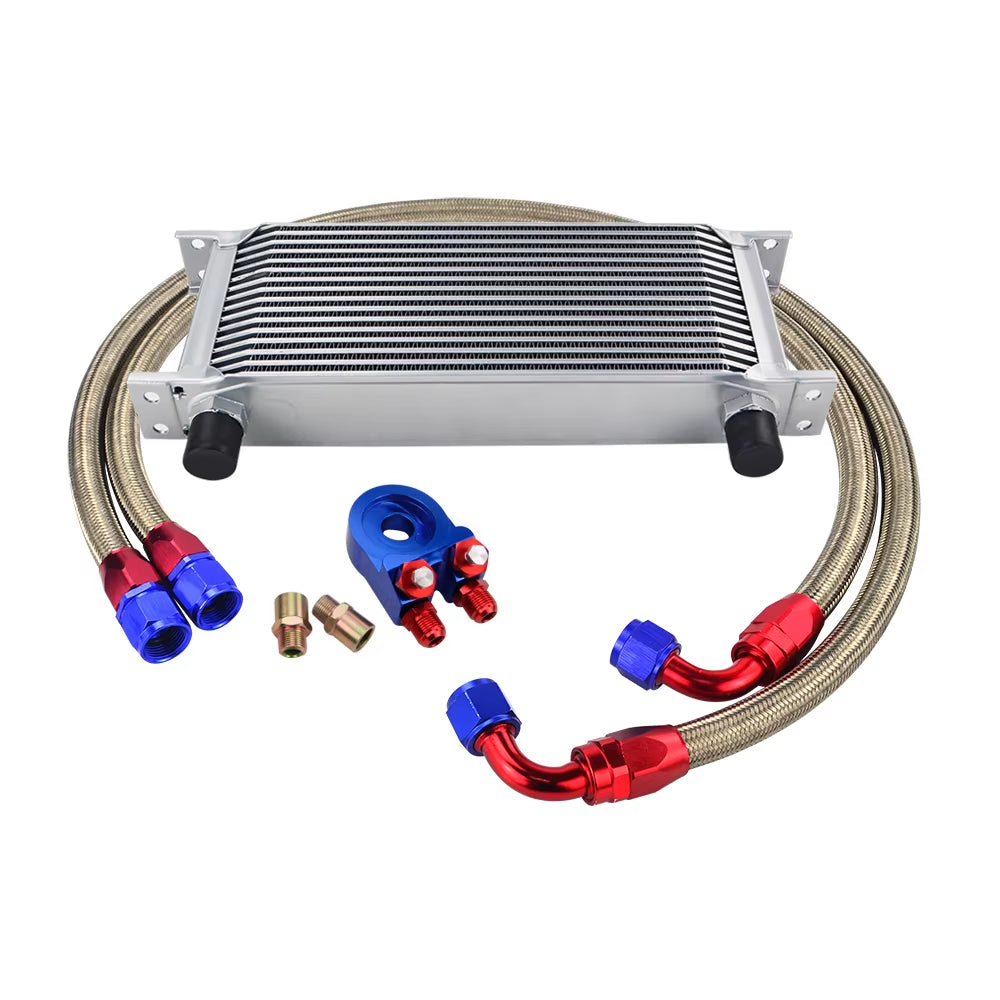

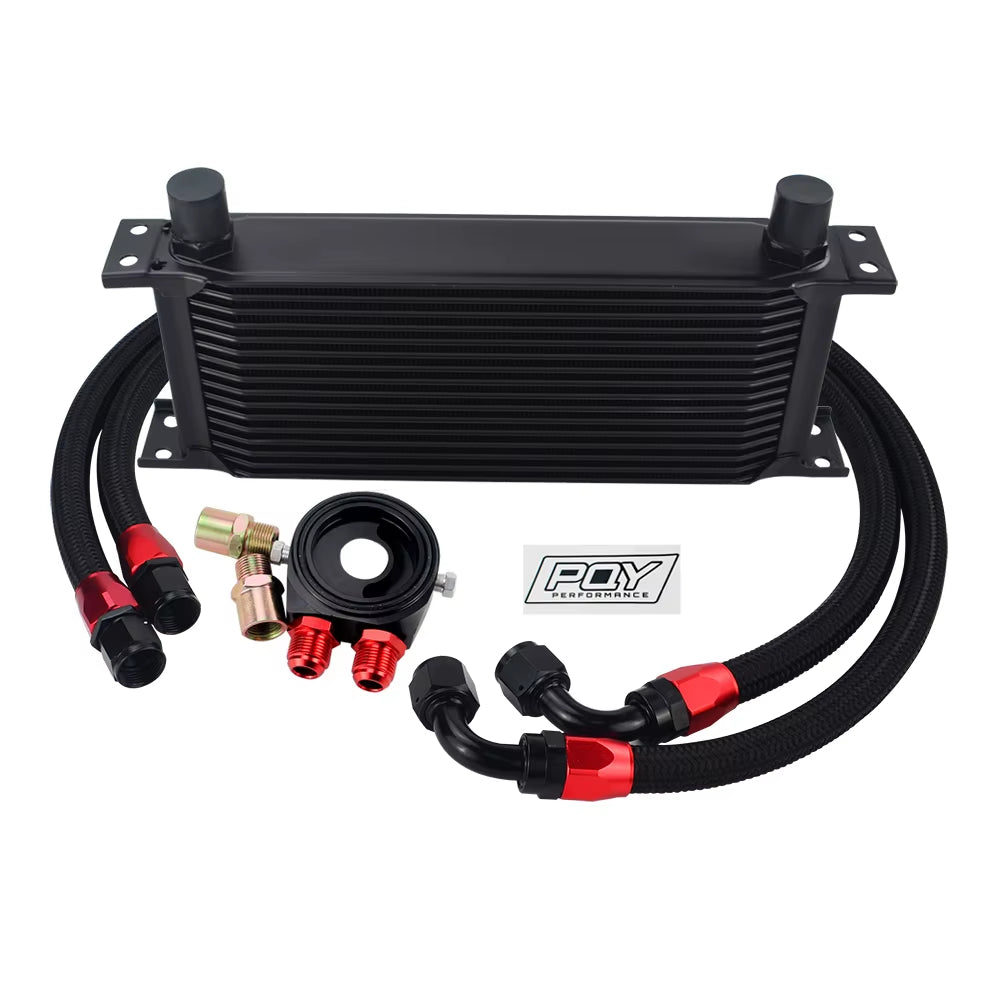

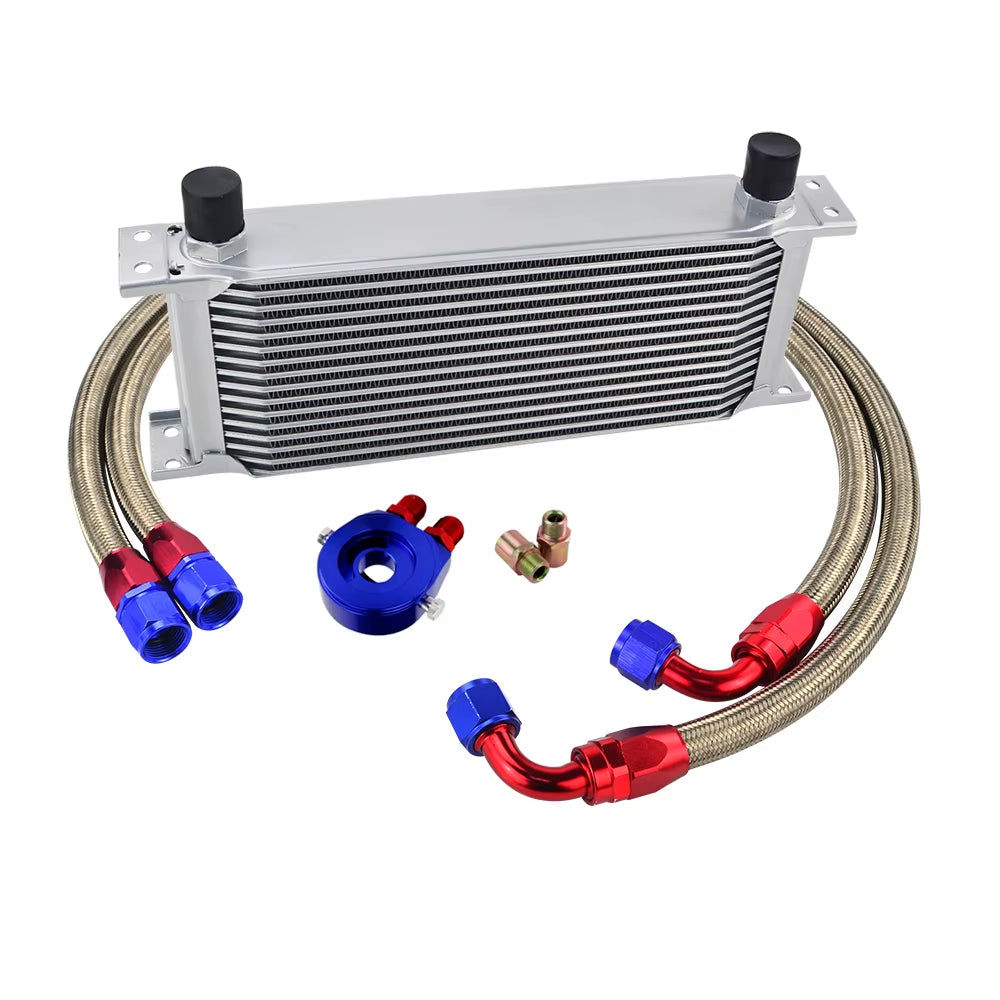

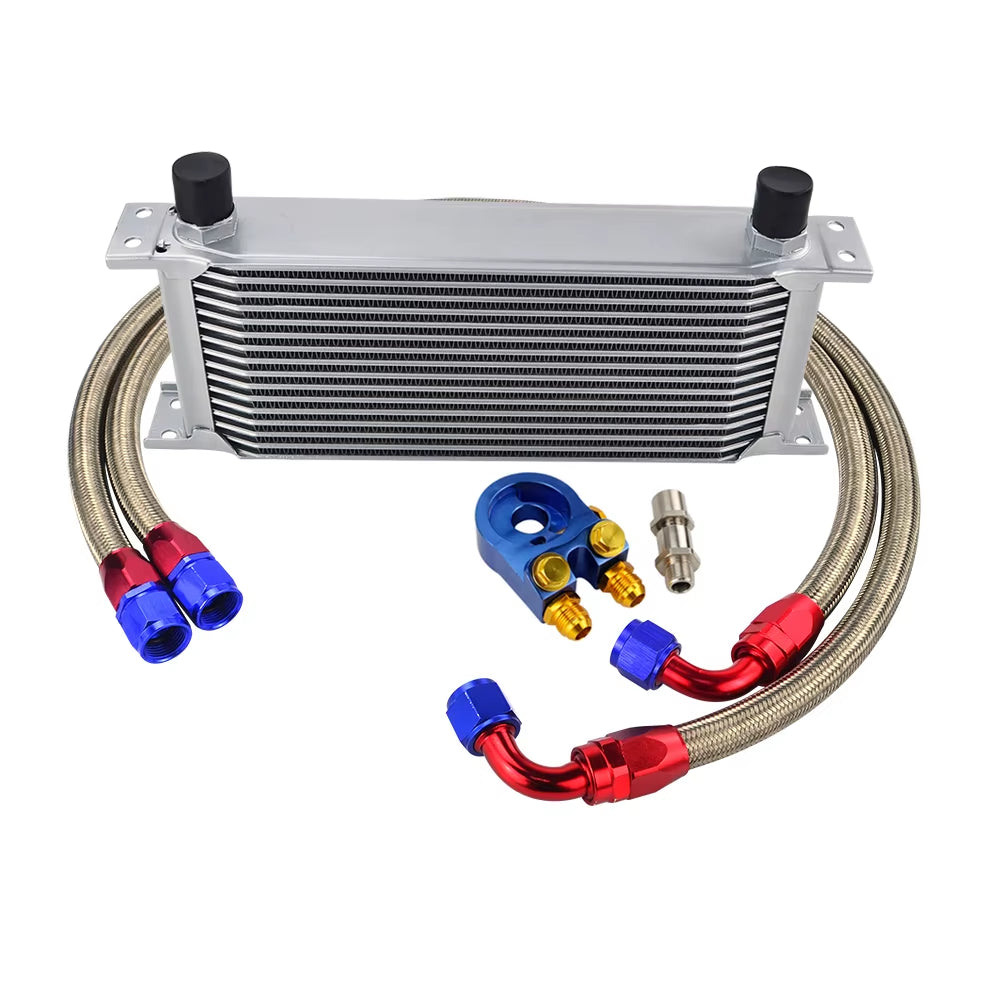

Universal 16 Rows Oil Cooler Kit with Oil Filter Sandwich Adapter and Stainless Steel Braided An10 Hose + Sticker

Application:

• Universal.

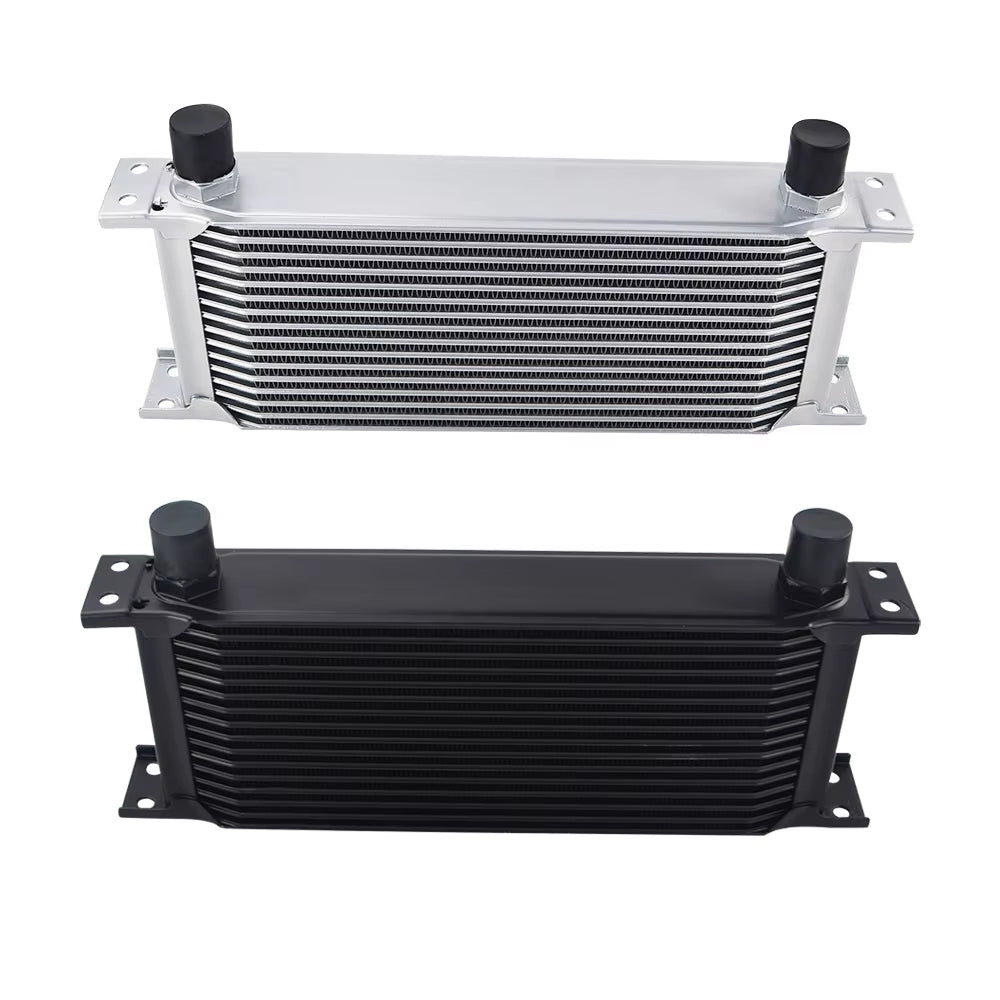

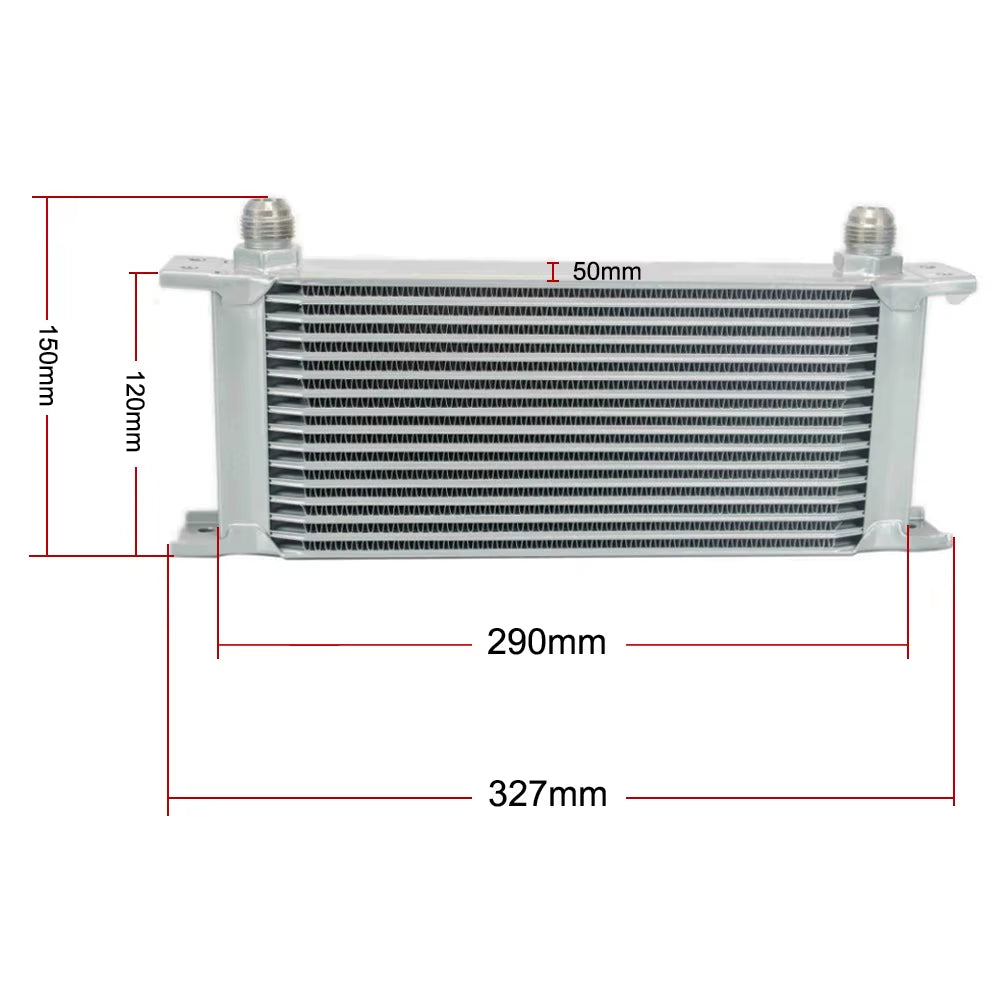

16 Rows Oil cooler:

• Inlet / Outlet Size: AN-10.
• Made with High Quality T-6061 Aluminum.
• Potentially Reduces Oil Temperature up to 50°F.
• Powder-Coated and Oxidized for Durability and Protection.
• Helps Reducing Coolant Temperature and Extends Engine Life.
• Excellent for Modified Street Vehicles, which are Driven Hardly with Minimal Track Use.
• Professional Installer is Highly Recommended (No Instruction Included).

AN FITTING& BRAIDED HOSE LINE SIZE:

• Length:1M(0-90DEGREE)
• Length:1.2M(0-90DEGREE)
• Size: 10 AN
• Inside Diameter: 0.56" / 14.27mm
• Outside Diameter: 0.82" / 20.83mm

Oil filter adapter:

6721:

• Size: 10.5 x 7.4 x 3.2 (Height x diameter x Wide) (Approx)
• By-Pass Port Mounting Nut Spec: 3/4-16 UNF// M20 x 1.5
• Material: Made of Aluminum Alloy

6723:

• Material: Made of Aluminum Alloy
• 10-AN Fittings Inlet / Outlet
• 1/8 " NPT Additional outlet
• 7/8" x 14 Thread outlet
• Screws size: 3/4-16 UNF,M20*1.5

6746:

• Temperature Note: Close at 71 degree, Open at 82 degree
• Height: 100mm
• Thicknes:30mm
• O-ring OD: 64.5mm
• Fitting: 3/4-16 UNF,M20*1.5 AN10
• Made from High quality aluminum and anodized.

Package Included:

• One Set Oil Cooler Kit. (100% Brand New Never Used Or Installed)
