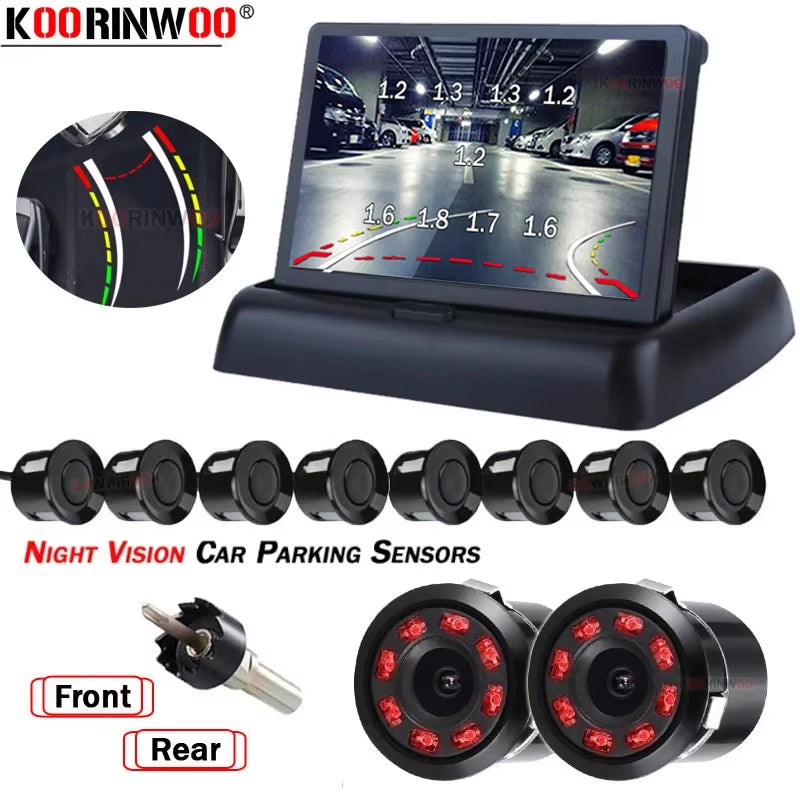

Parktronic 8/6/4 Car Sensors Front + Back Camera Parking Sensors Distance No. LCD Monitor Buzzer System for Blind Area

8/6/4 Sensors Buzzer 22mm Car Parking Sensor Kit Reverse Backup Radar Sound Alert Indicator Probe System 12V 7 Colors

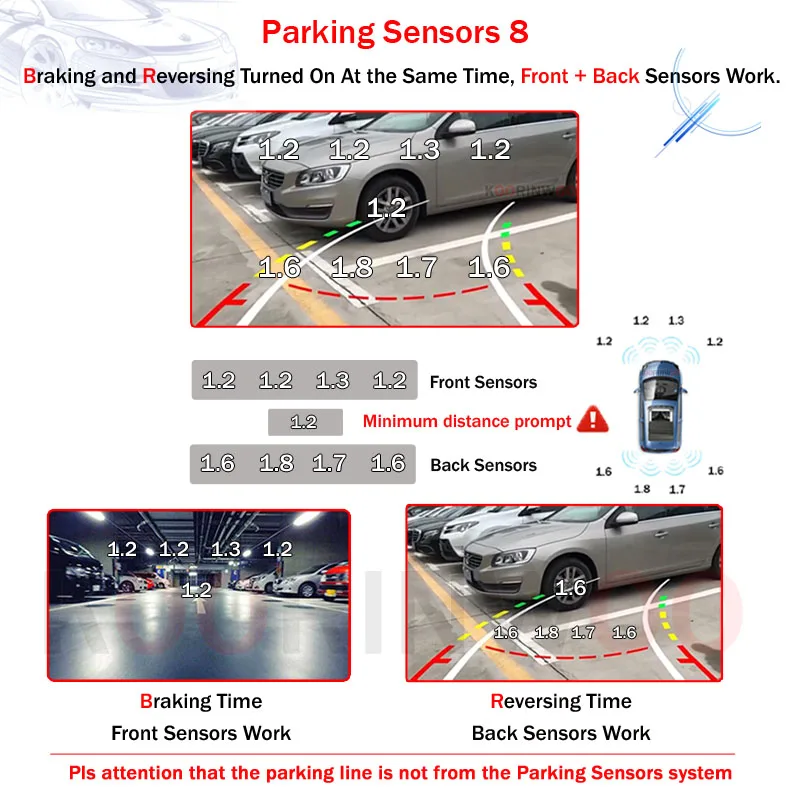

8/6/4 Sensors Dual Core Parking Reverse Radar System ( the parking distance can show on LCD Car Monitor )

• Dual Core CPU

• Brand: Koorinwoo

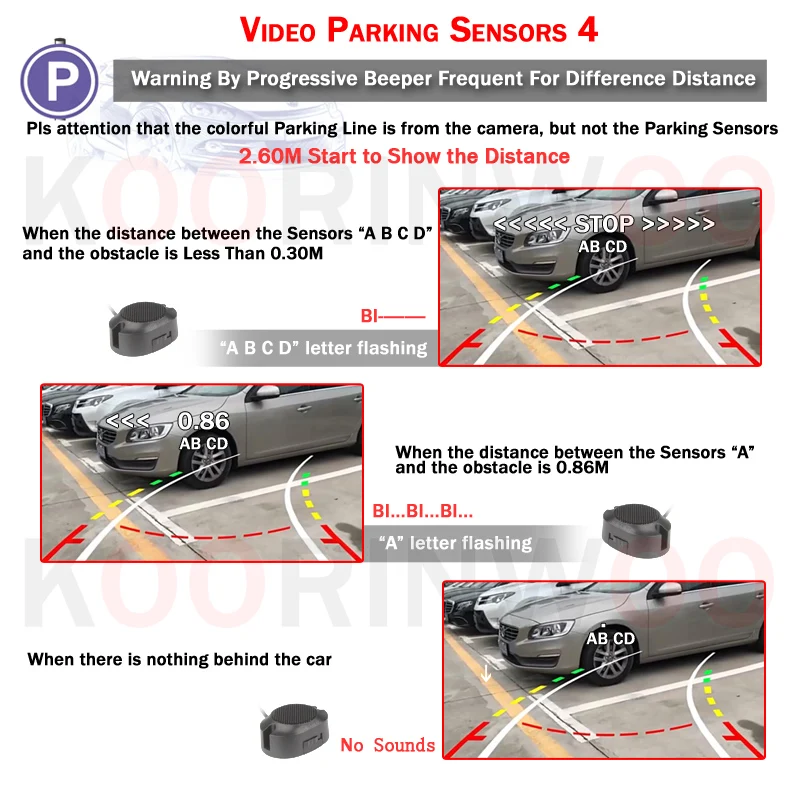

• Step-up buzzer alarm

• Detective distance from 0.3-2.1m

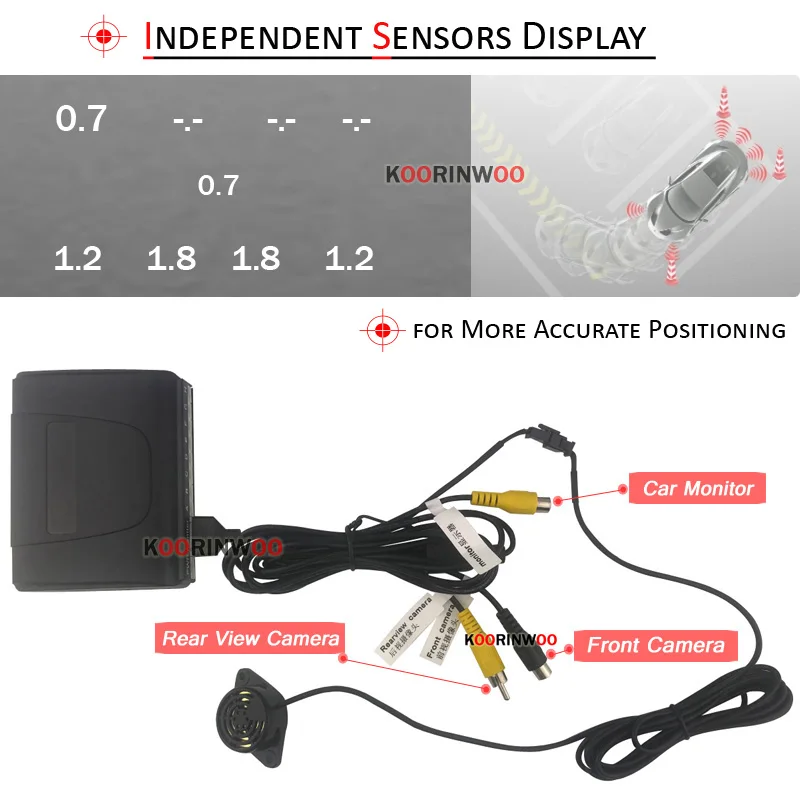

• Can be connected with camera and any rearview monitor and display distance on the monitor

• Votage 12V

• 4*Sensor cable lenght:2.5m

• 4*Sensor cable lenght:6m

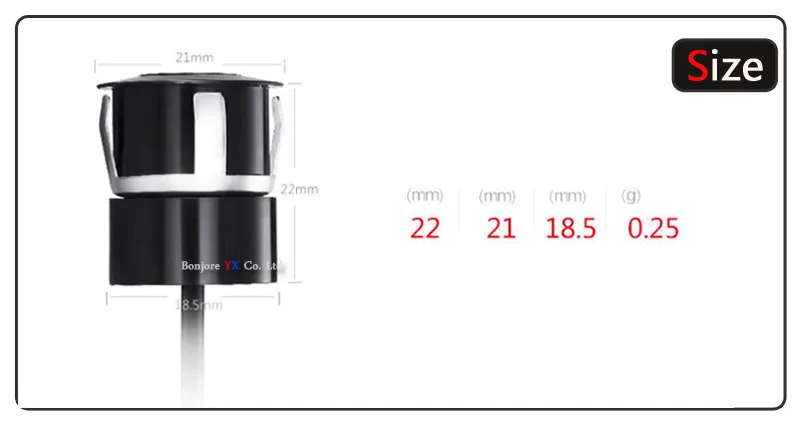

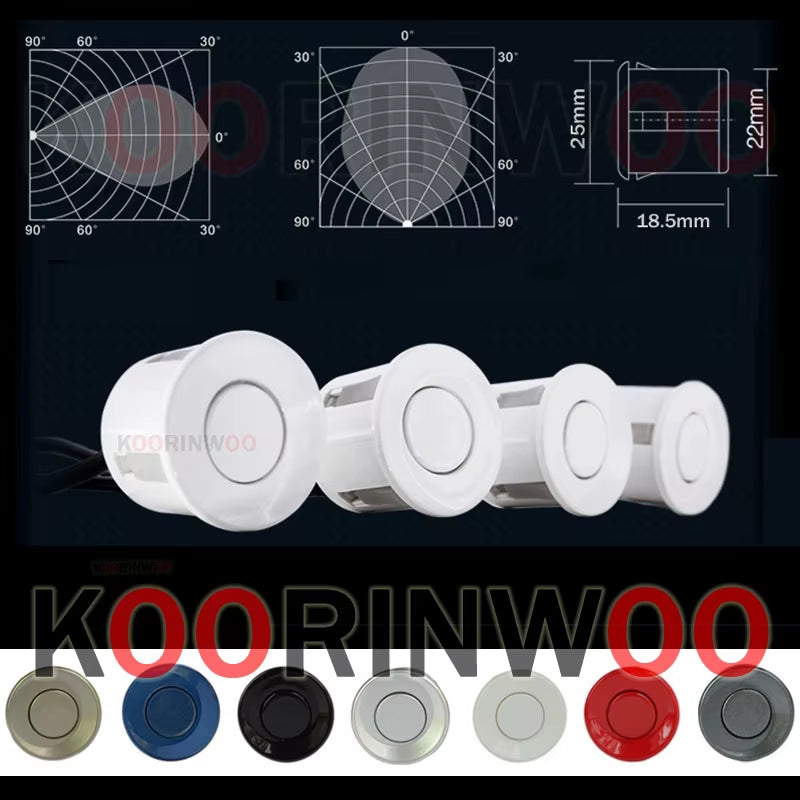

• Sensor diameter:22mm

• alarm volume 65dB

• Storage temperature:-40~60 degree Celsius

• Operation temperature:-40-60 degree Celsius

• Sound-BIBI

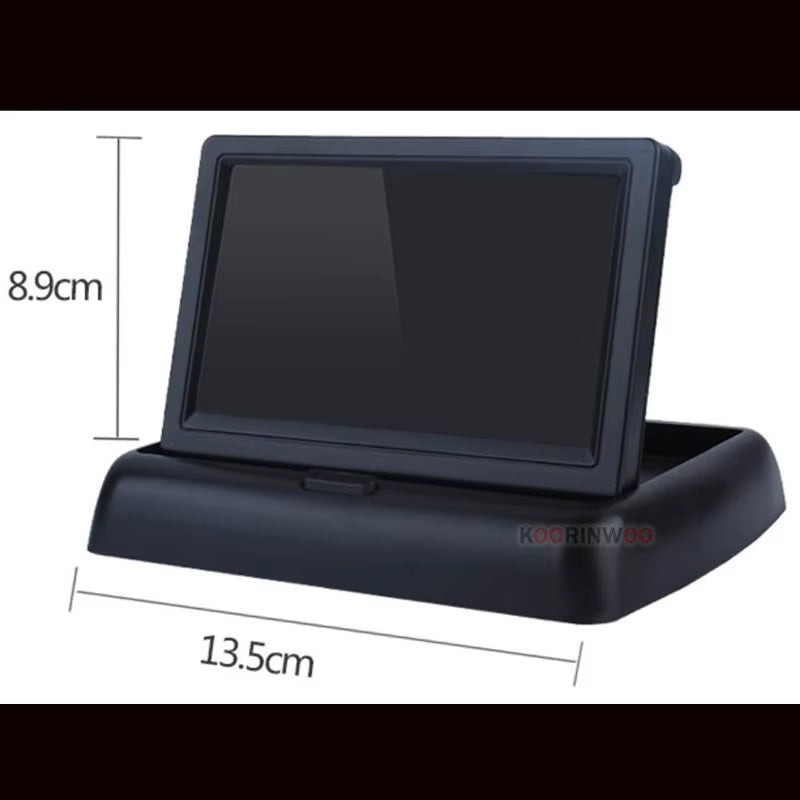

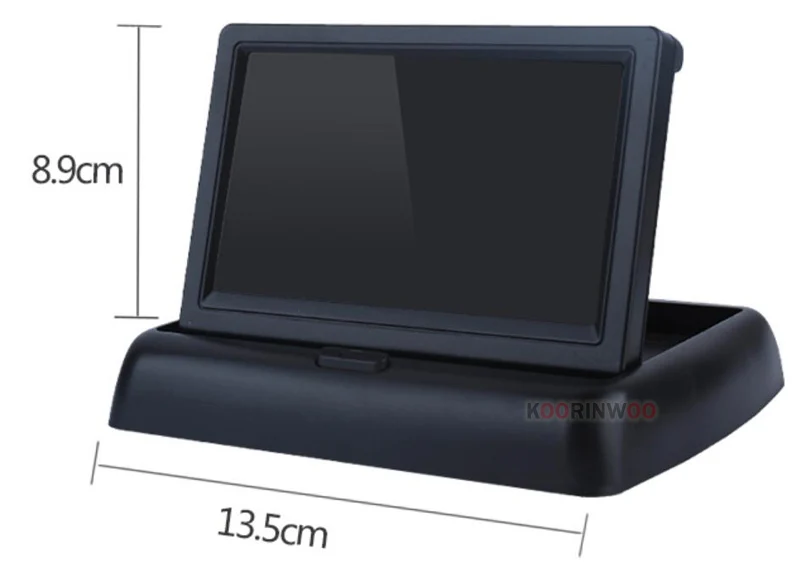

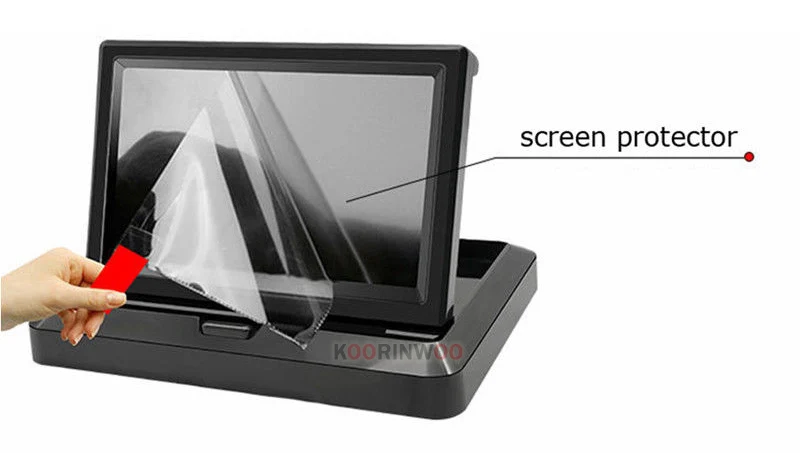

HD Car Monitor

• Screen Size: 4.3 inch TFT 16:9 screen

• Display Component: Color TFT-LCD

• Number of Dots: 800W * RGB * 480H

• Video system: PAL/NTSC compatible

• Power supply: DC 12V

• Rated power consumption: 3W

• Operation temperature: -40~+60°

• Storage temperature: -40~+60°

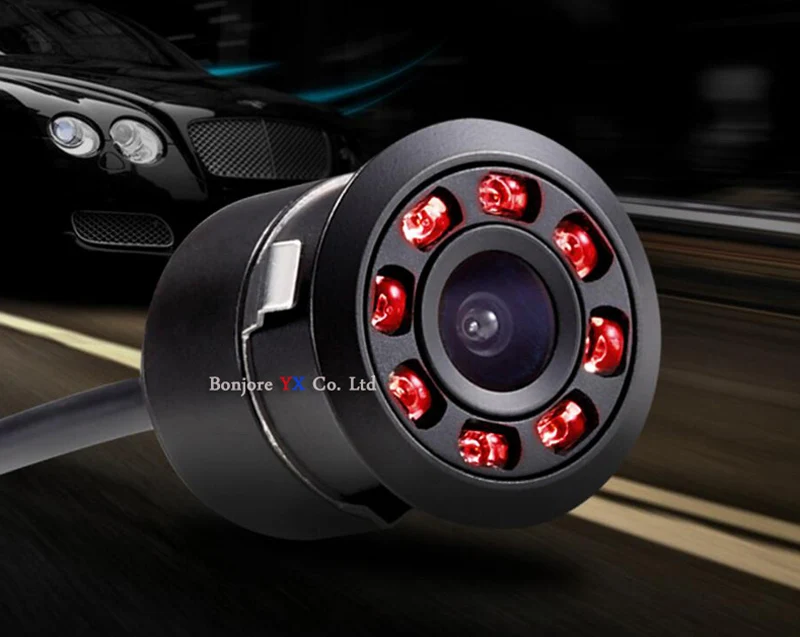

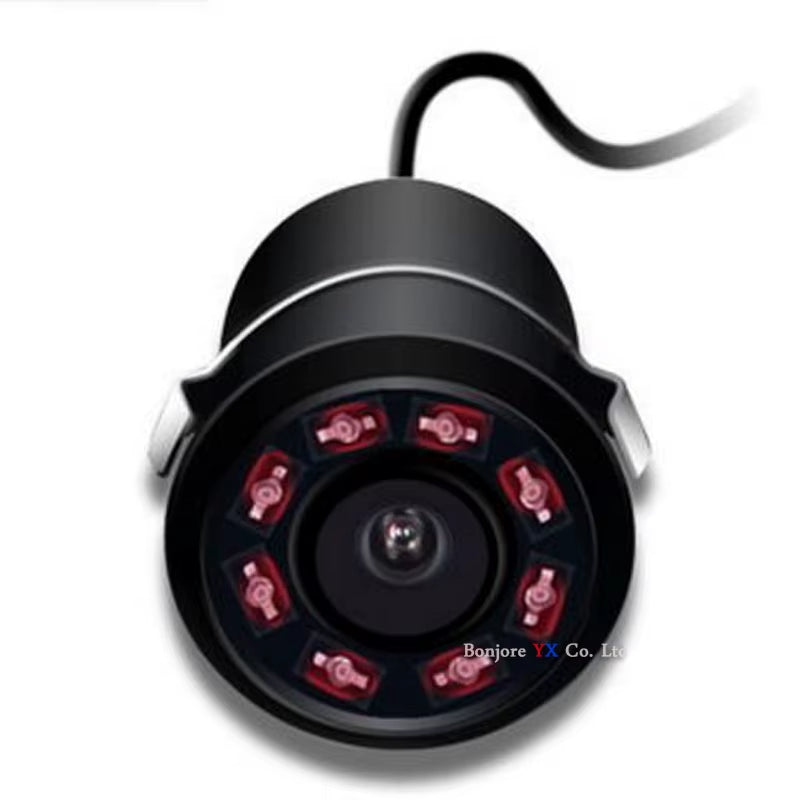

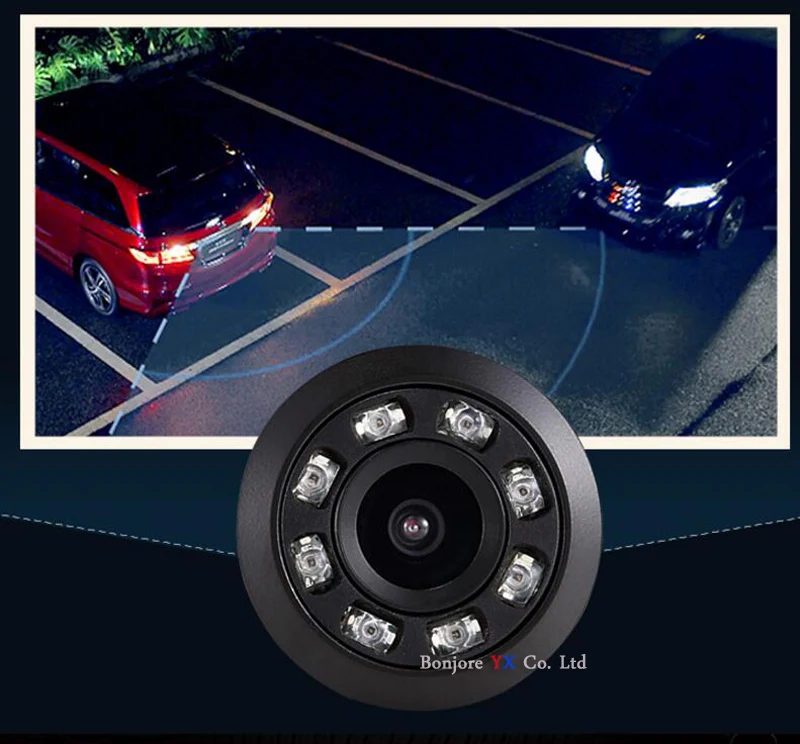

HD CCD Car Parking Camera

• Color: Black

• Image Sensor: 1/4" CCD

• TV system: NTSC（Default) or PAL

• Horizontal Resolution: 720 TV lines

• Pixels: 756(H) * 692(V)

• Sync. System: internal

• S/N Ratio: >48dB

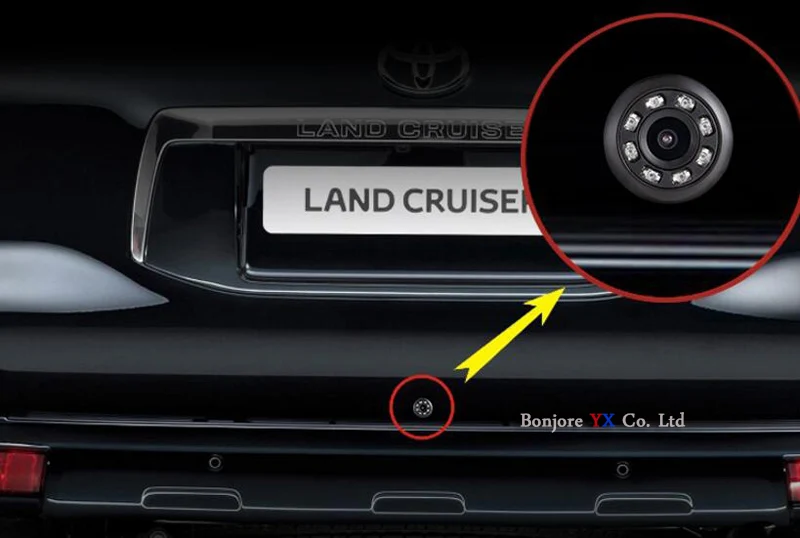

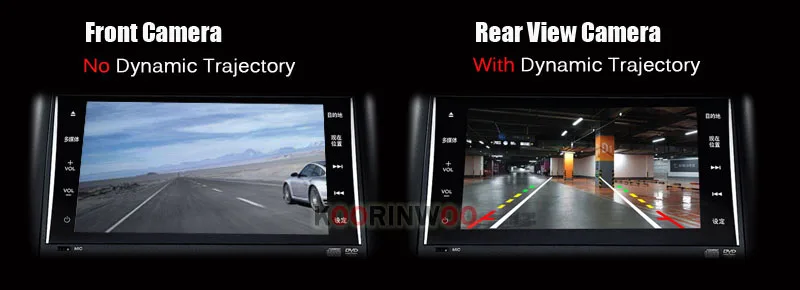

• Front Camera: Normal Image, No Parking Line

• Rear view camera: Mirror Image, With Dynamic Trajectory Parking Line

• Electronic Shutter: 1/60 to 1/100,000 seconds

• Video Output: 1.0Vpp, 750hm

• White Balance: Auto

• Power: DC 12V

• Operating Temperature: -40 to + 80 degree, 95% RH maximum

• Storage Temperature: -40 to + 105 degree, 95% RH maximu

• Video Cable Length: about 6m

• Package weight: 210g

The speaker will sound about 1.5m,and This is CVBS system,please check your radio/dvd/monitor and cameras are NOT AHD system!!!

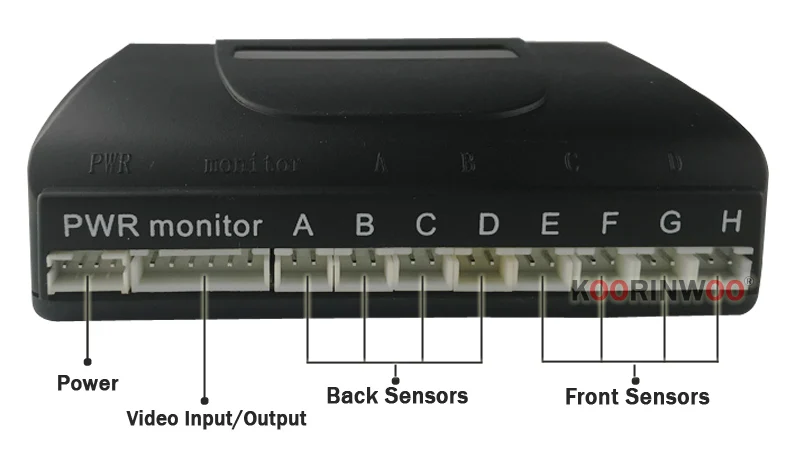

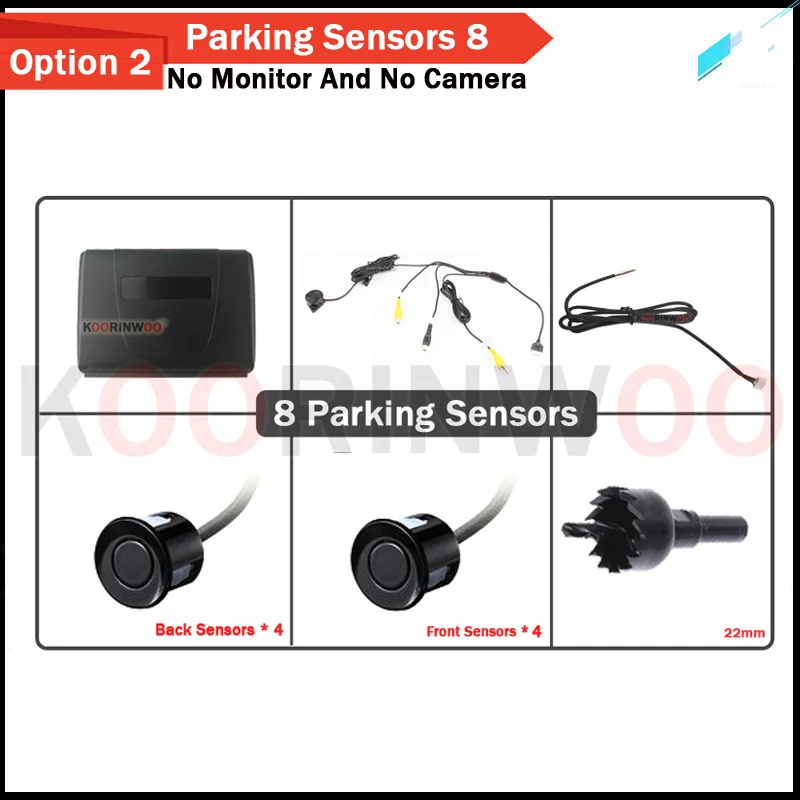

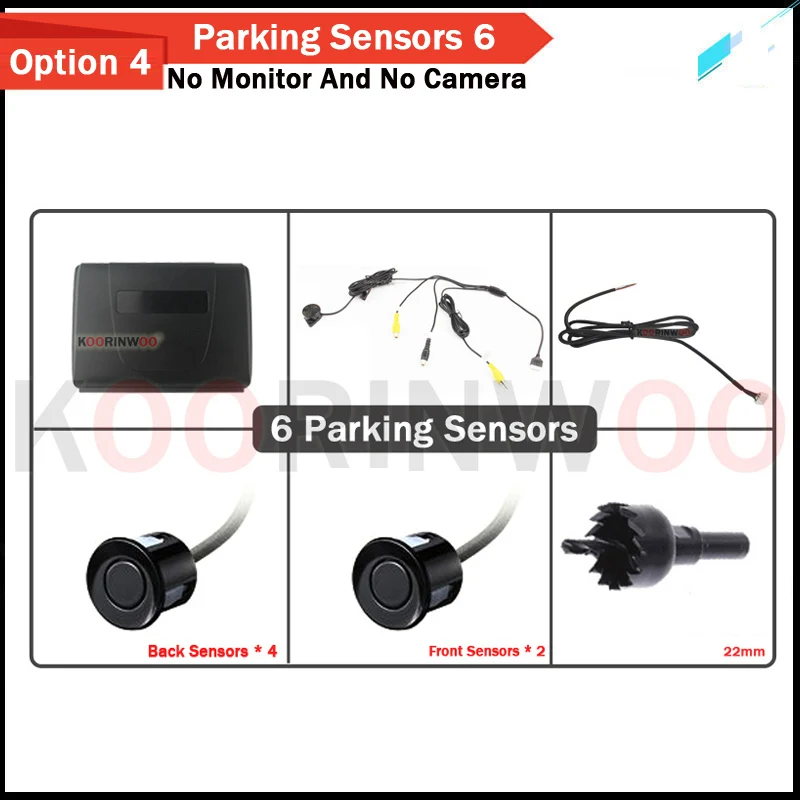

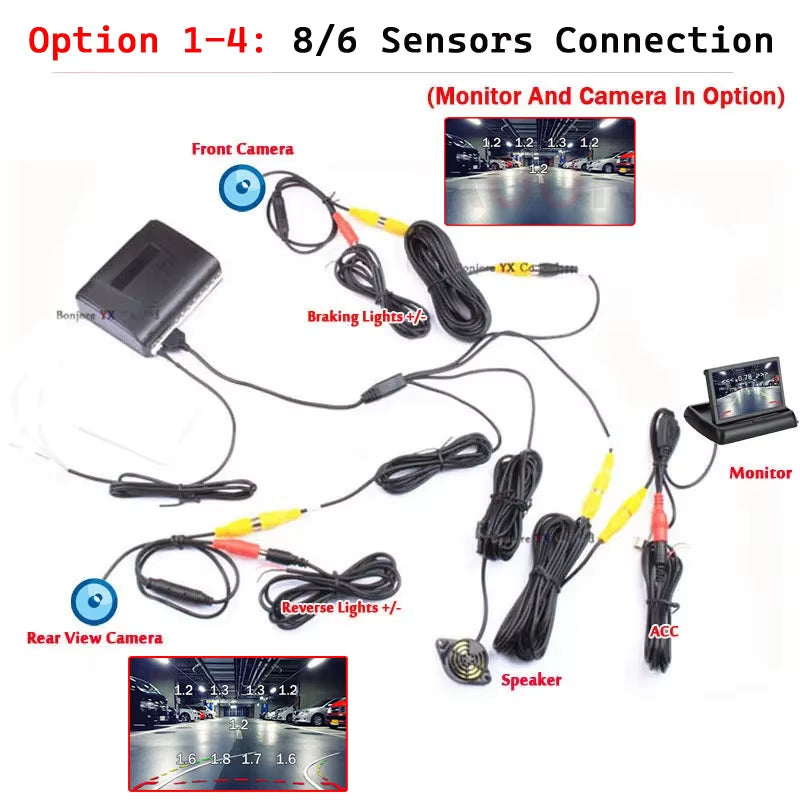

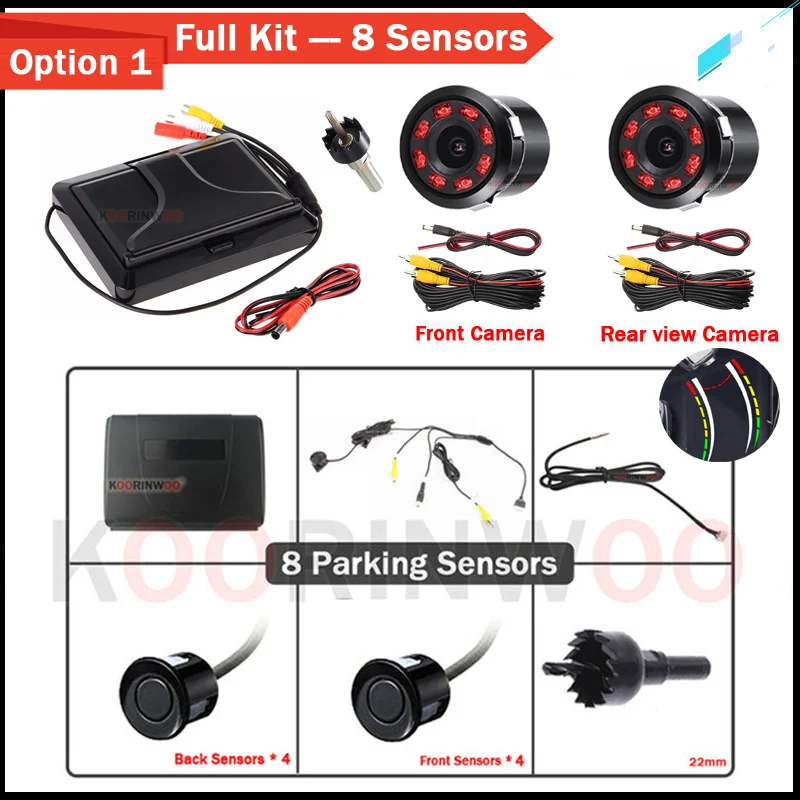

Control Unit for Sensors 8/6 (Option 1- 4)

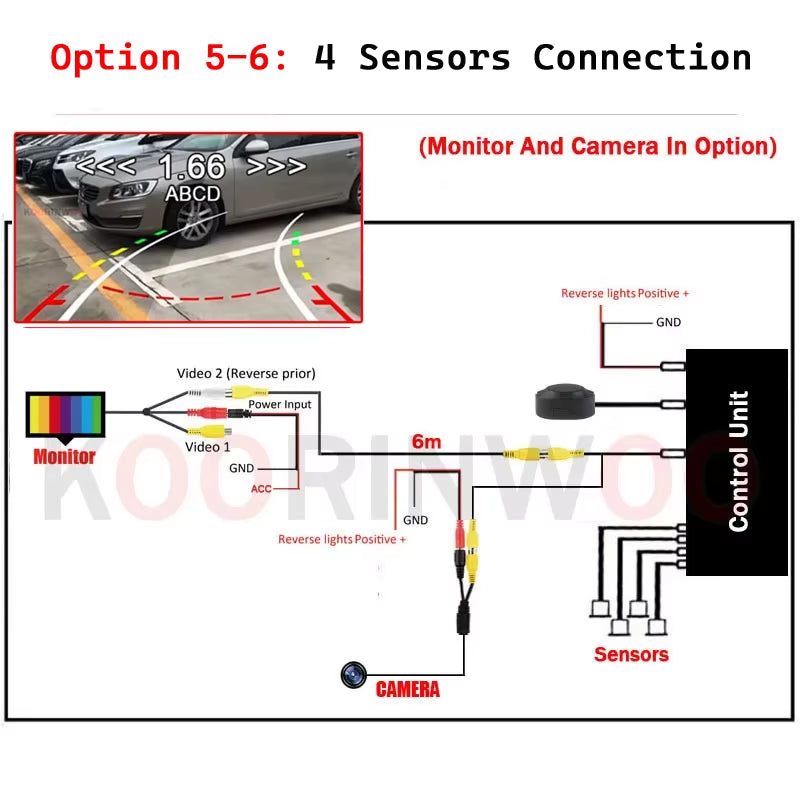

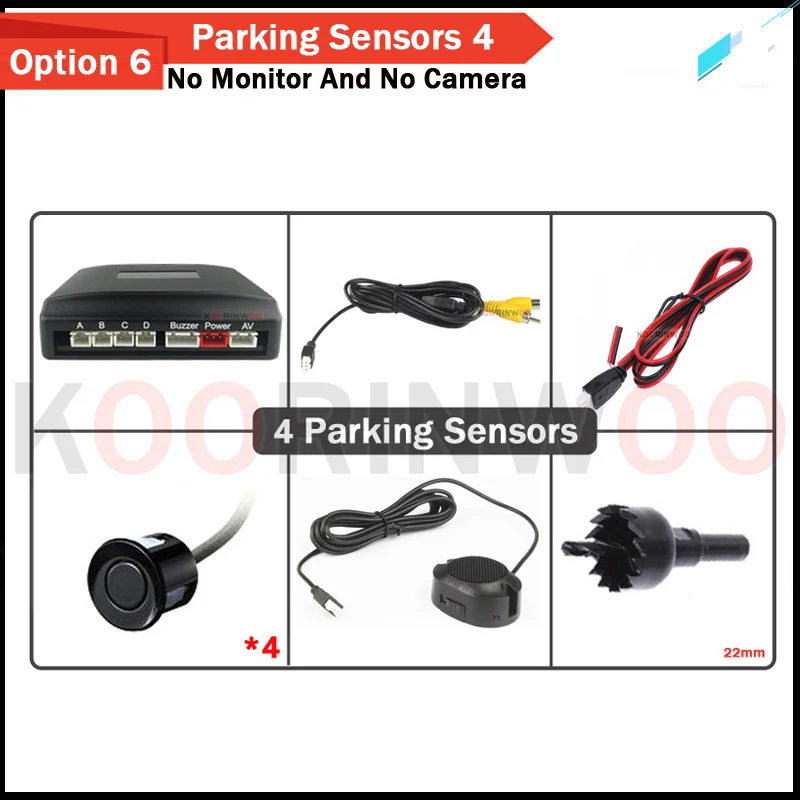

Control Unit for Sensors 4 (Option 5- 6)
