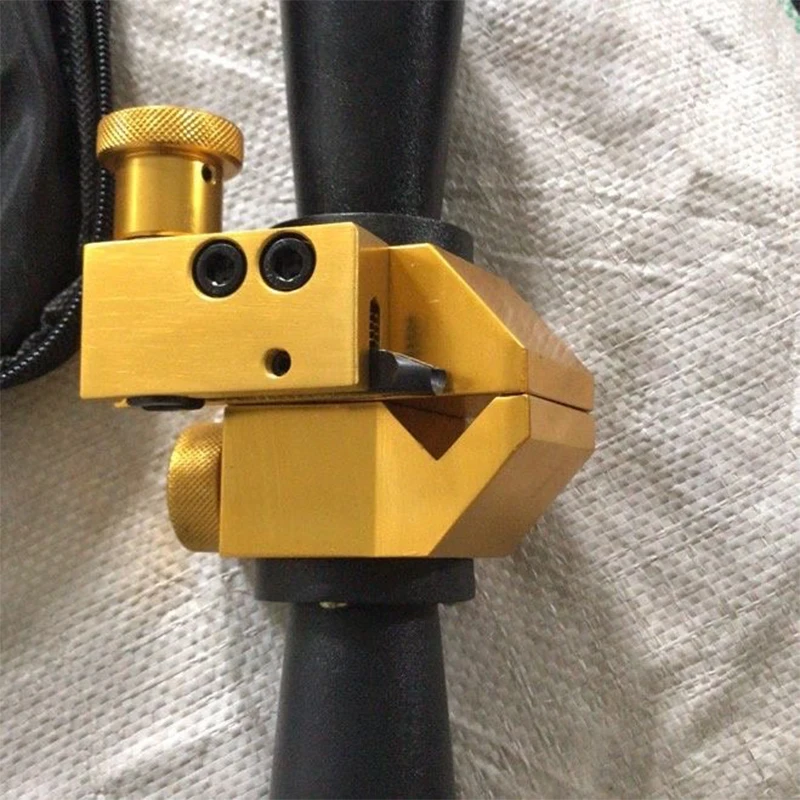

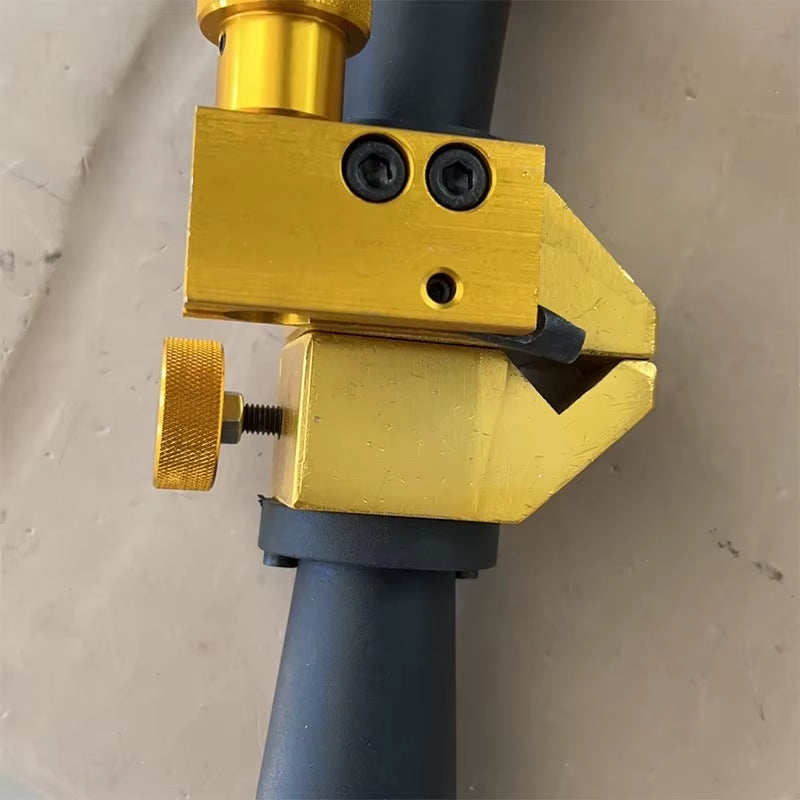

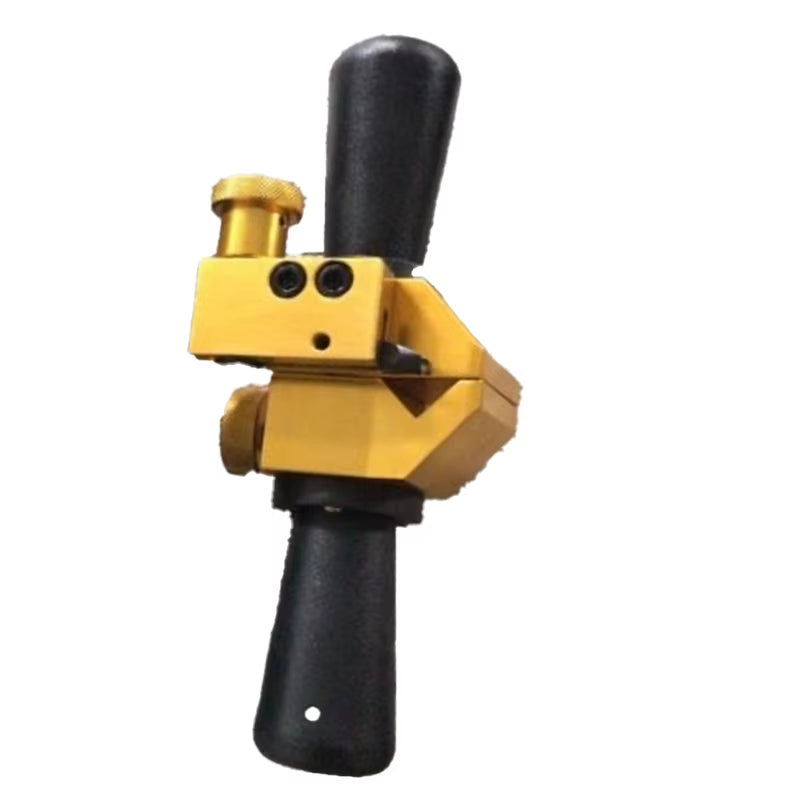

BP-400 Rotary High and Low Voltage Insulated Cable Stripper Cable Insulation Stripping Machine Layer Removal Knife

Model: BP-400

Peeling depth: less than 4.5mm

Weight :0.83KG

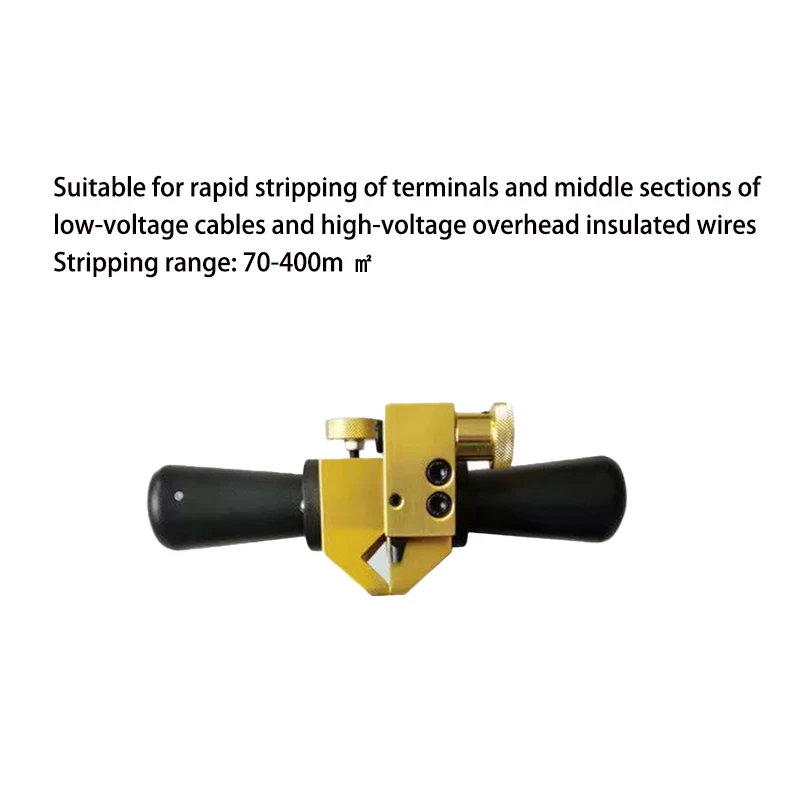

Scope of application: copper aluminum cable with diameter below 30MM

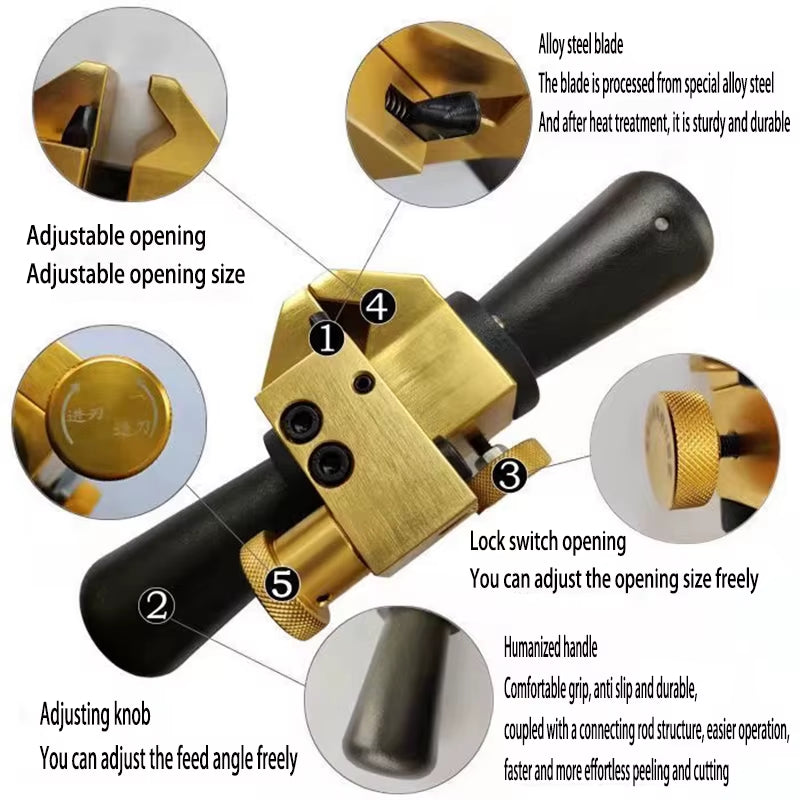

Product characteristics

● Manual stripper for stripping insulation layer of various wires and cables;

● Peeling speed, standard shape, accurate adjustable, labor-saving application;

● High efficiency, is an essential tool for power engineering operations

Operation procedure

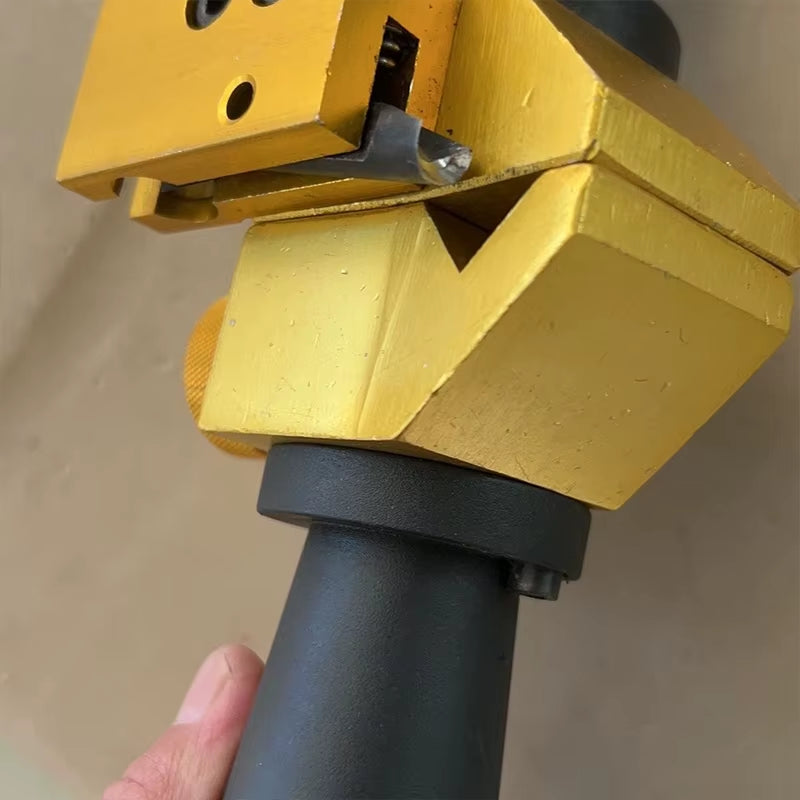

① Clamping wire: make the tool holder of the wire stripper face up, loosen the movable support stop wheel, pull the handle of the support, put the cable into the V-shaped slot, place the end of the cable to be stripped in the position of the blade, move the clamping block to clamp (moderate), and lock the hand wheel;

(2) Adjusting the knife: first turn the blade adjusting nut on the fixing clip block so that the blade tip is placed on the cable cladding and the core plane, and then turn the adjusting nut on the fixing clip block to tilt the blade;

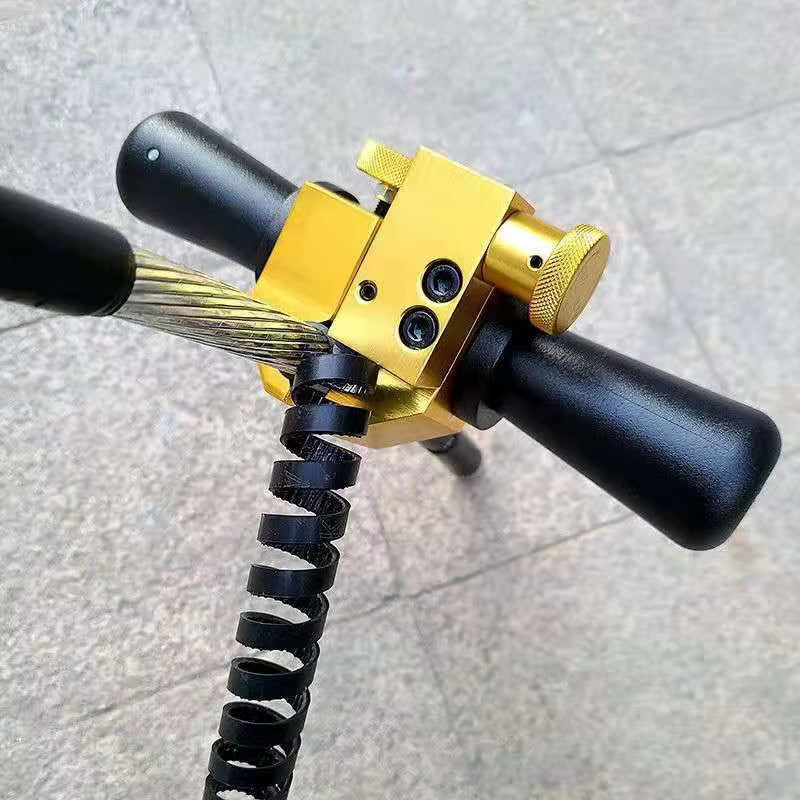

③ Stripping: turn the handle of the stripper, at this time, the stripper can turn the wrapped layer into a spiral bar; Then turn the wire stripper, you can cut off the spiral strip in a circular circle, stripping can be completed.
