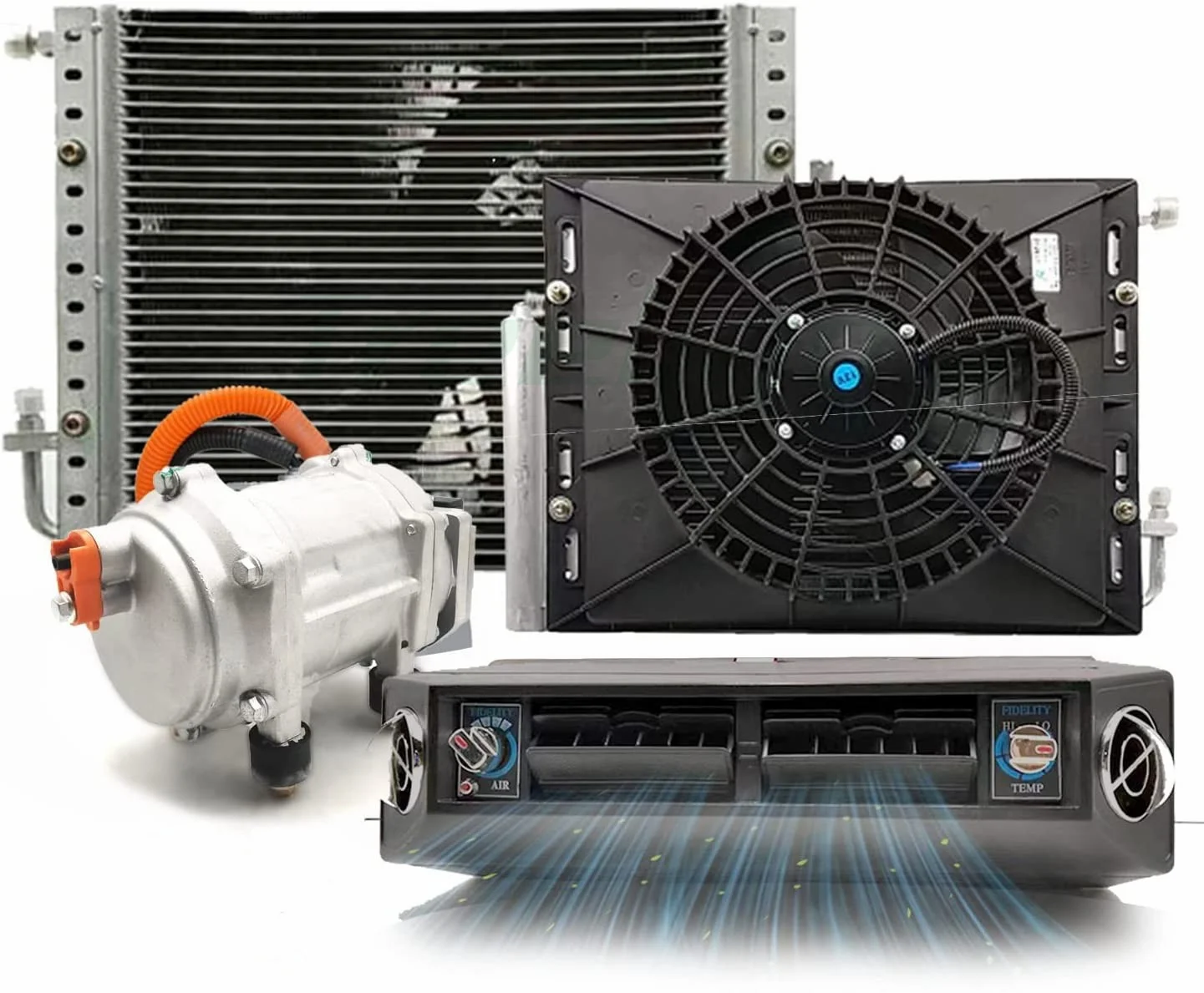

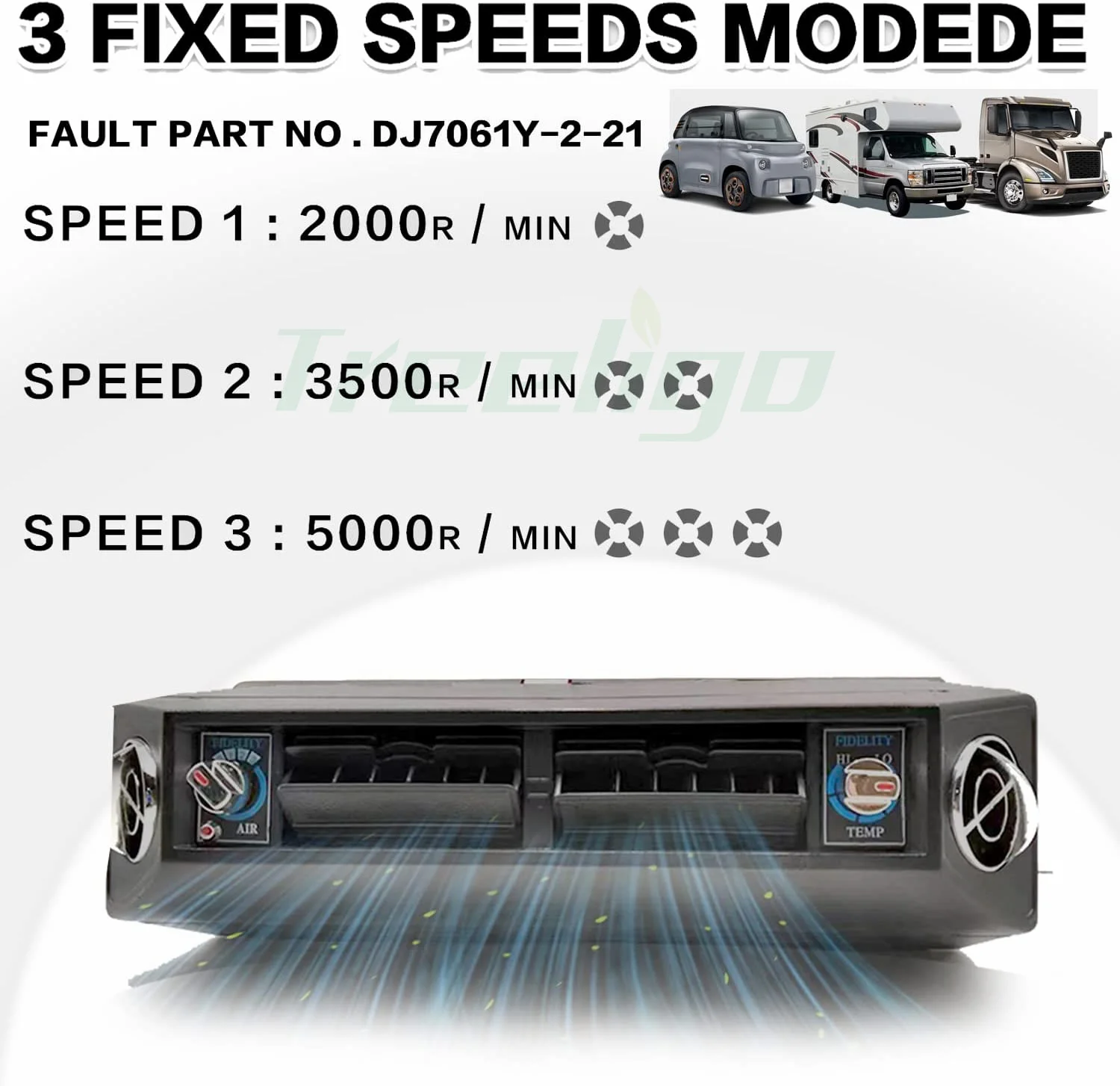

Aspligo Heat Cool 12V 24V Electric Car Air Conditioner under Dashboard Air Conditioning for Automotive Truck Camper Motorhome

Feature:

1. Rapid cooling (2000W cooling capacity)

2. Hidden installation (air conditioners that cannot be seen from the appearance and can be installed anywhere, suitable for scenarios where multiple installation positions are not sufficient)

Advantages:

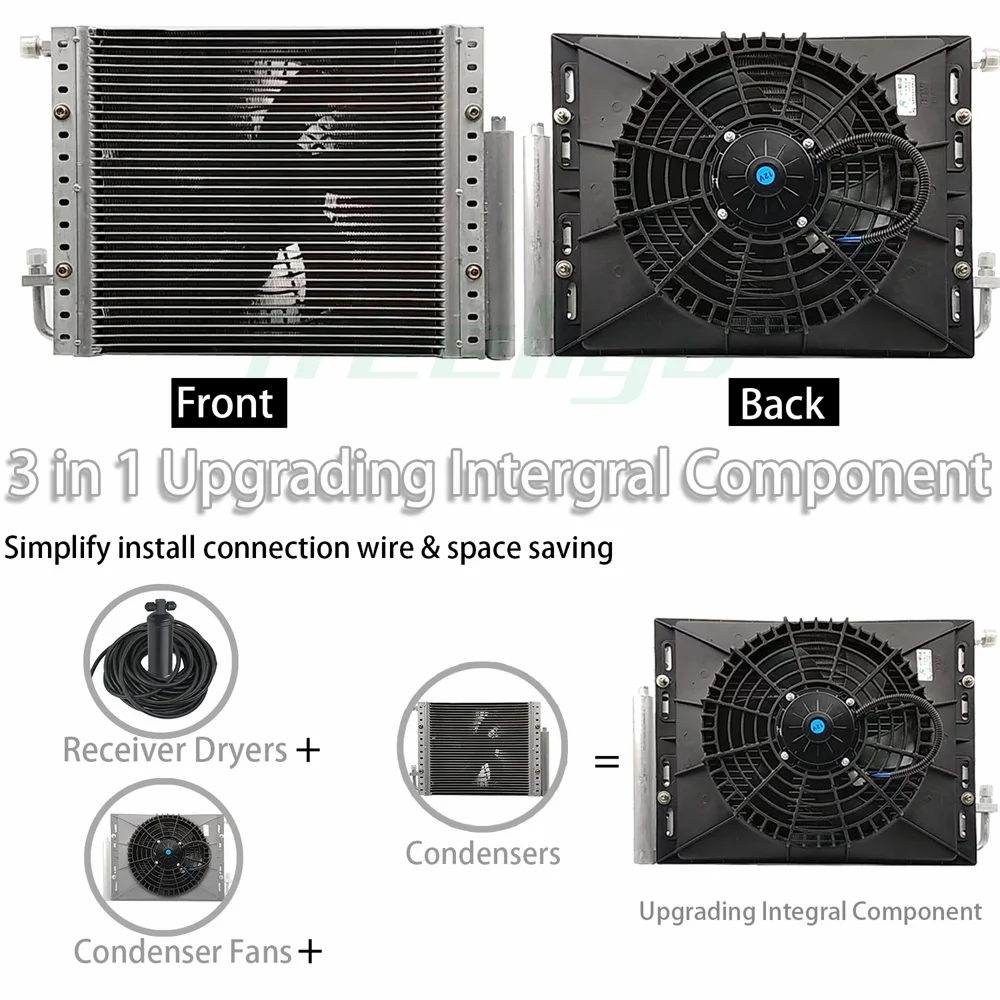

Upgrading integral component: Combine traditional Receiver Dryers and condenser fan and condenser,Easy Install and connecting
Direct Drive by battery in automotive: 8 hours drive using after car flame out.
Apply Electric Scroll air conditioner compressor Bracket measurement 40*180*3 mm
Rated Voltage:12 ,24 Volt,
refrigeration: R134a,
Displacement: 12ml/re
Low Noise using. Multiple protection: leakage protection, short circuit protection,Anti-leakage protection, short circuit protection, overvoltage protection, low voltage protection

Descripton：

Refrigerating capacity: 1.94kw max
Rated Voltage:12, 24 Volt 50A
Application:A:utomotive air-condition
Refrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re
Refrigerator oil: EMKARATE RL68H/100ml
Power 550W-600W
Refrigeration: 1000W-2000W

Scroll compressor Specification:

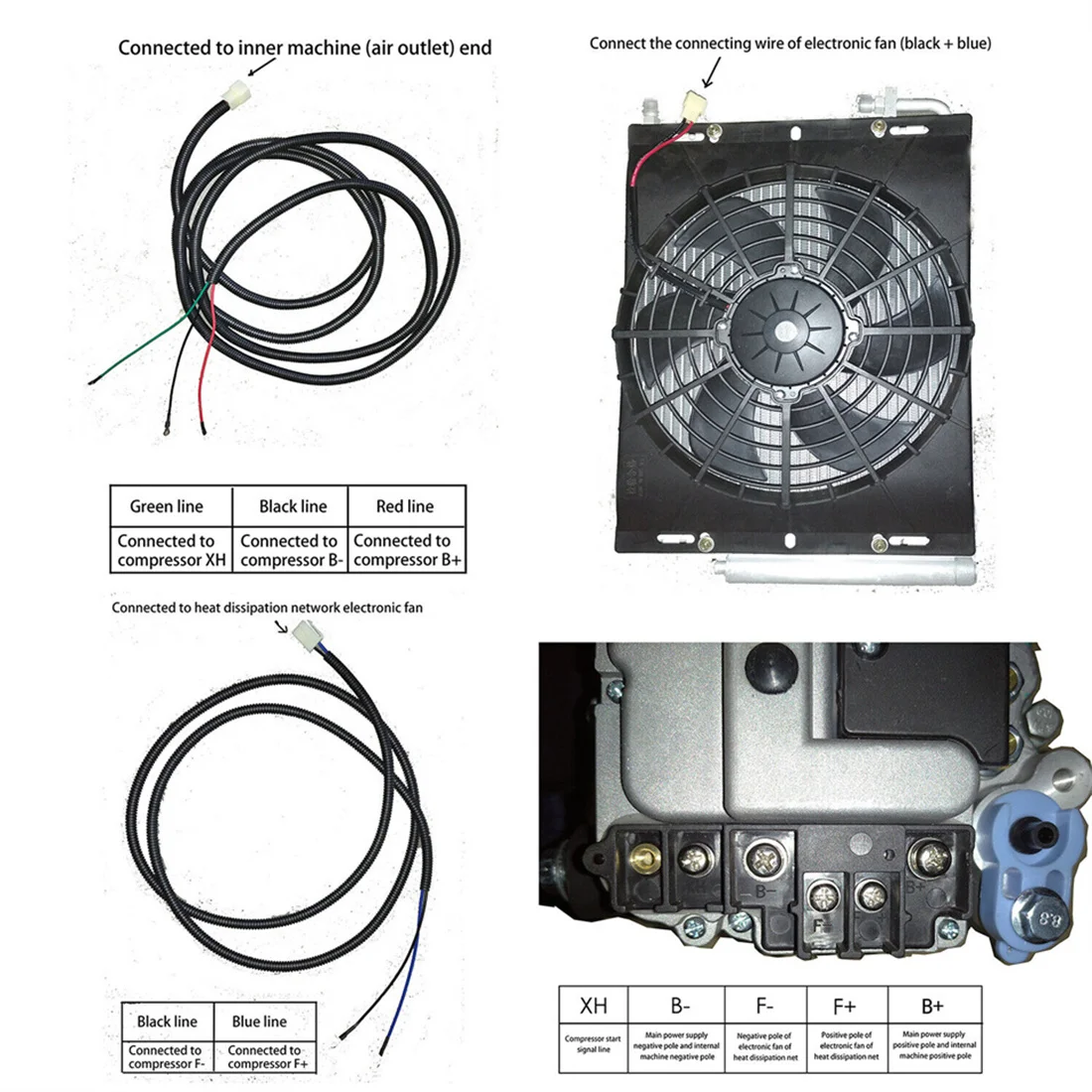

Electronic fan connection harness: 2 meters
Internal machine connection harness: 3 meters

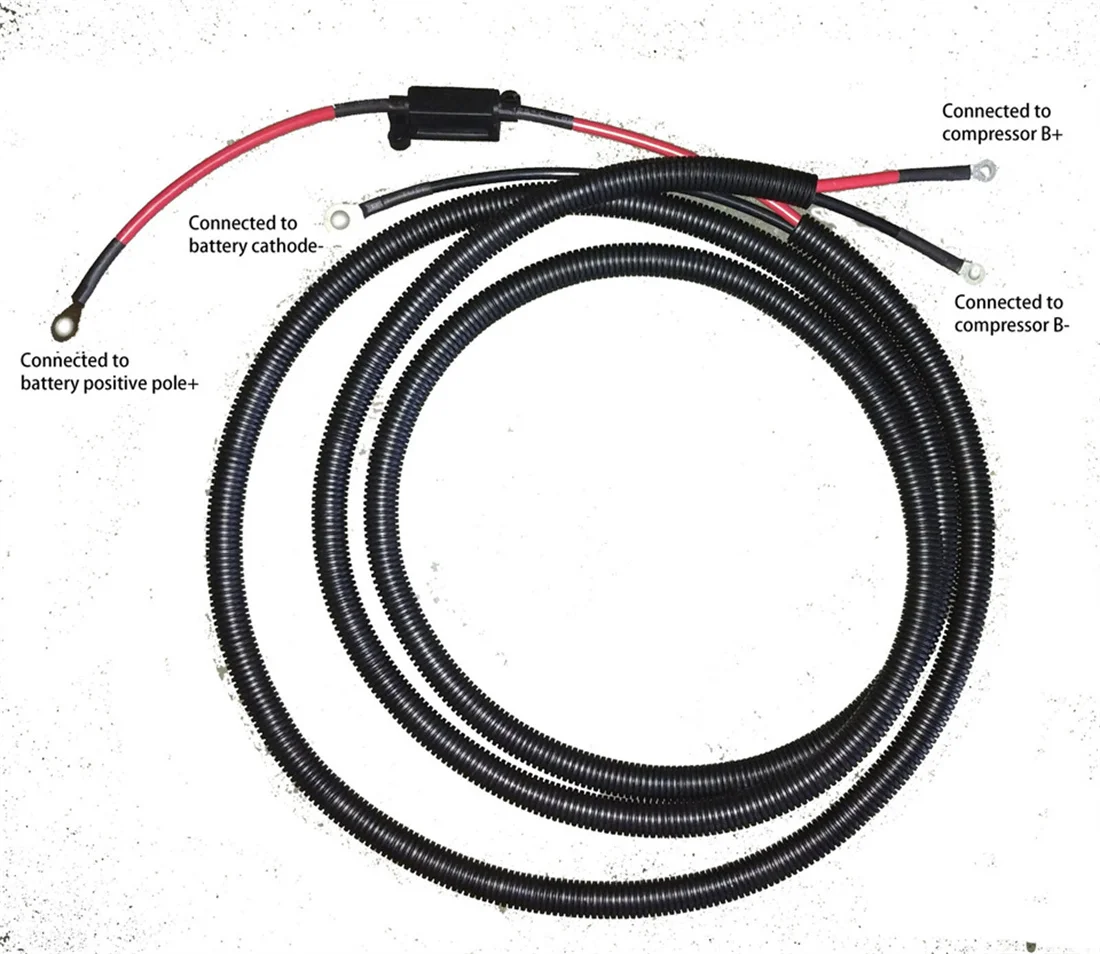

Main power harness: 3 meters
Fluorine-resistant hose:
3 points (thin tube) = 3 meters
4 points (thin tube) = 2 meters
5 points (thin tube) = 3 meters

Package List:

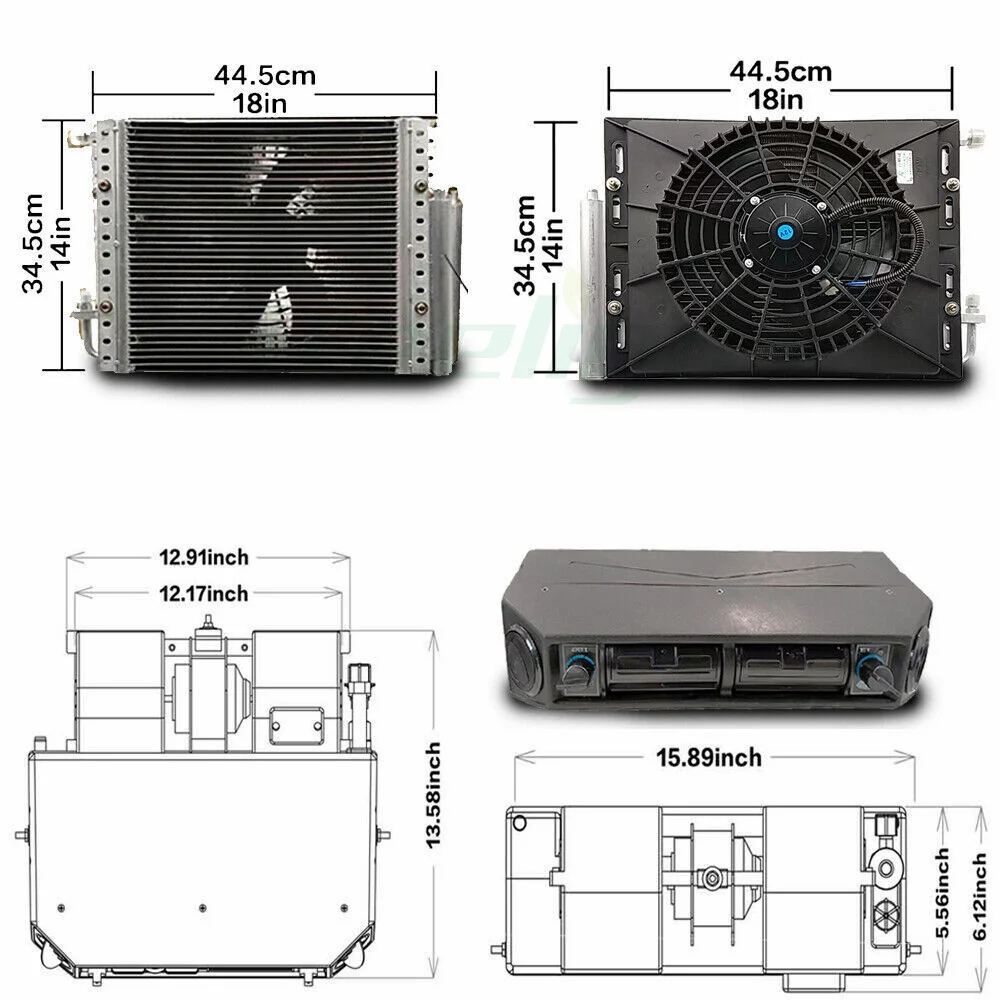

1*Condenser*Fan*Dryer Bottle（Dimension：14*18inch with bottle，OR interface）
Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）
1*Outlet

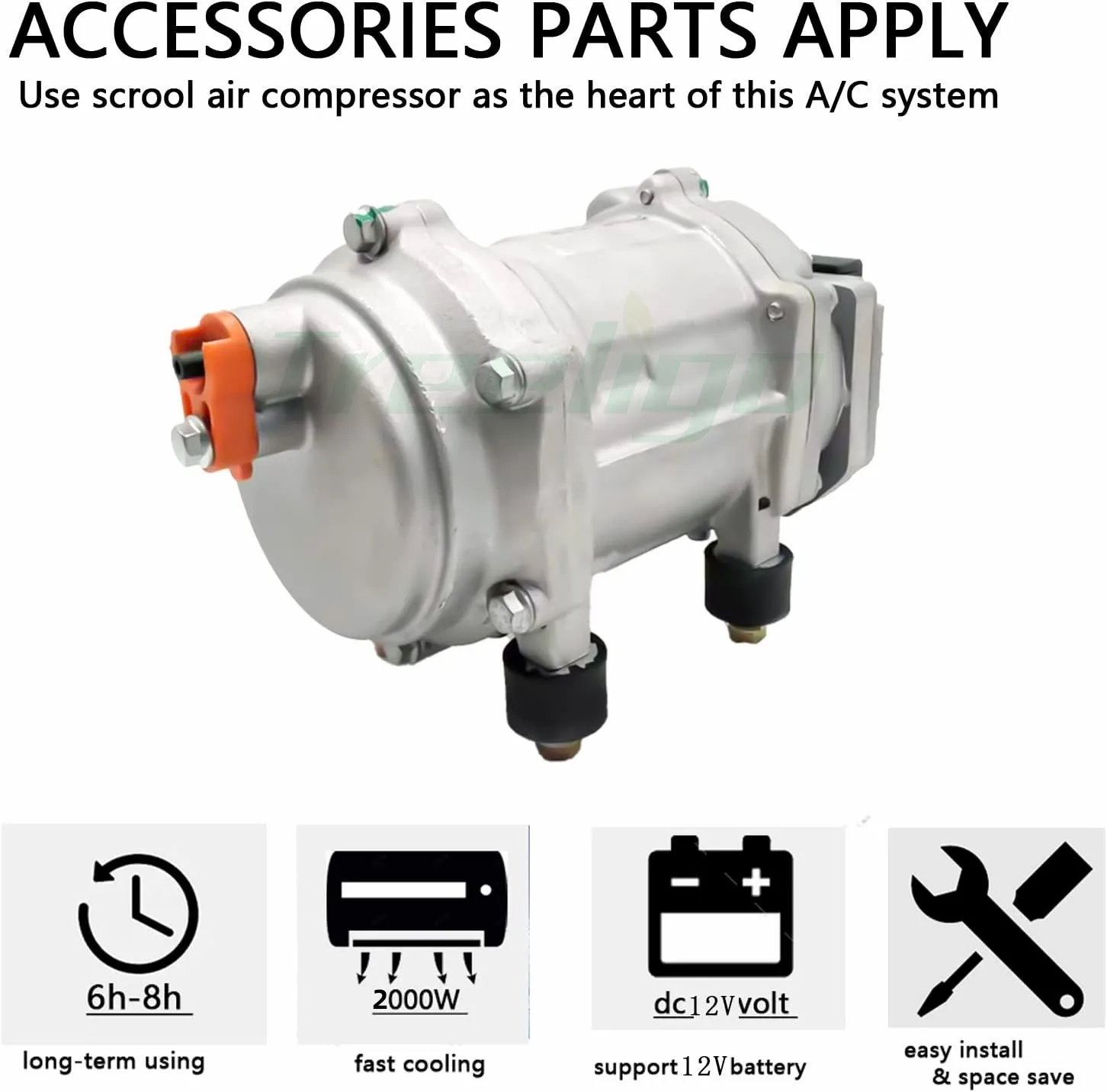

1*Integrated Electric Compressor
1.Wiring Harness
1*Fittings Kit

Note:

1.The total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4.The tolerance of None remarked dimensions
may be accordance with GB1804-m.
5. The performance of all unmentioned are in accordance with
GB/T 22068-2018.

Please Note：

As the package is too large, we may send it in two packages.

Kindly Reminder:

Regarding the issue of tariffs, Tariffs are not included in product prices and transportation costs.we will do our best to cooperate with you, but it is difficult for us to measure whether you need to pay import taxes. Hope you have a pleasant shopping experience.

Leave a message to tell us your Car model for confirmation.

Please contact us before leaving a neutral or negative feedback,We will try the best to solve the problem for you！
