Air Conditioner Assembly Machine Universal Ceiling Electric Air Conditioning Compressor 12V 24V for Vans Trucks
This electric air conditioning system (indoor unit + outdoor unit) can be installed anywhere you want. It works through a battery (generator). Even if your engine stops, you can still use this air conditioner. Low noise, energy saving and environmentally friendly is your best choice. It will help you save thousands of dollars on petrol every year.

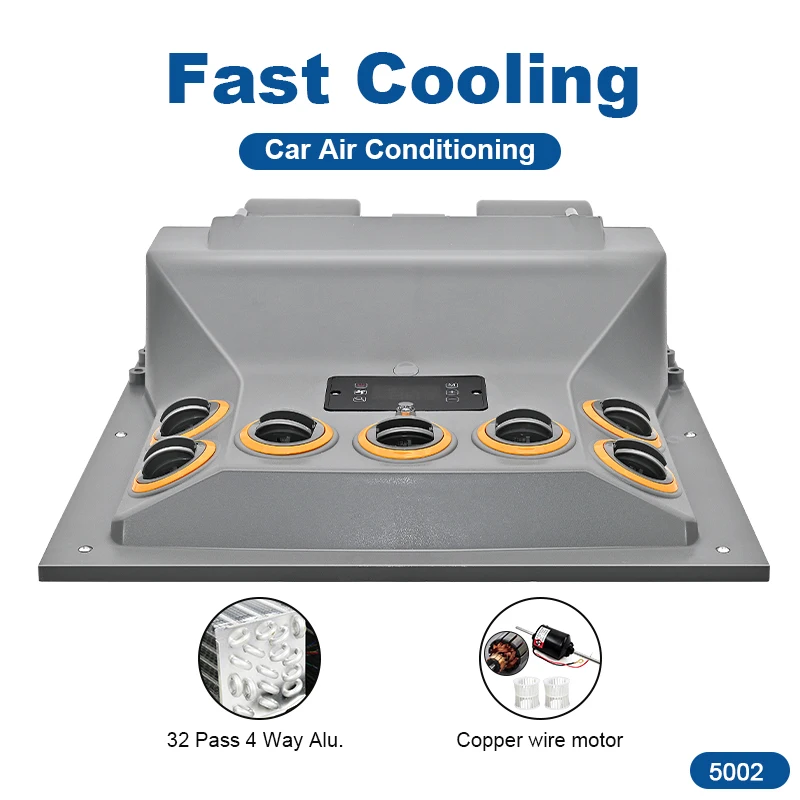

Evaporator:
Cooling capacity: About 25835 BTU
Evaporator coil: 32ALUMINUM TUBES,H-TYPE EXPANSION VALVE
Evaporator blower motor power: 80-100W

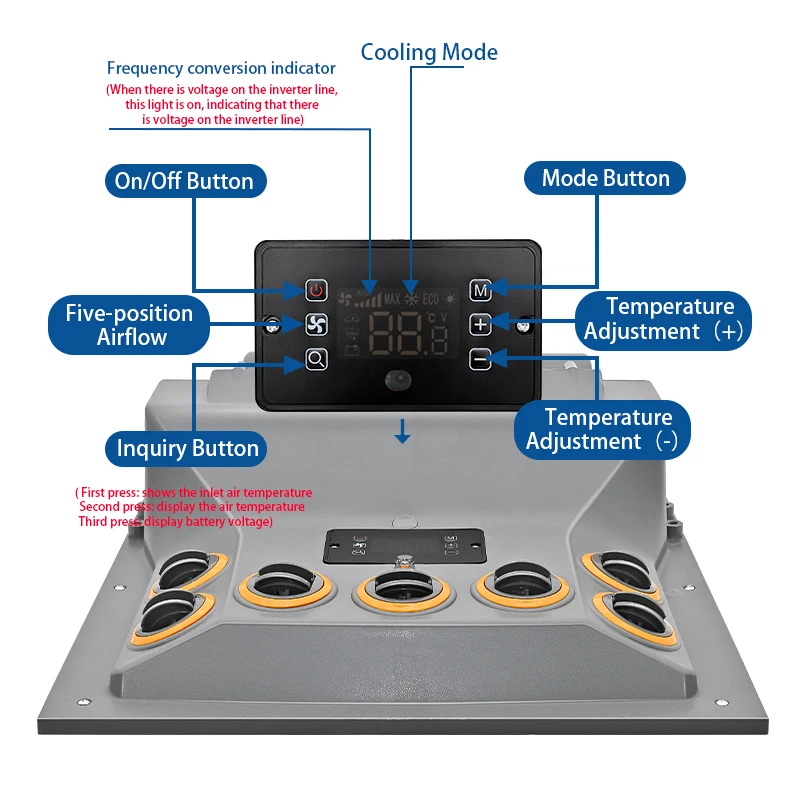

Switch: Temperature and 3-speed blower switch

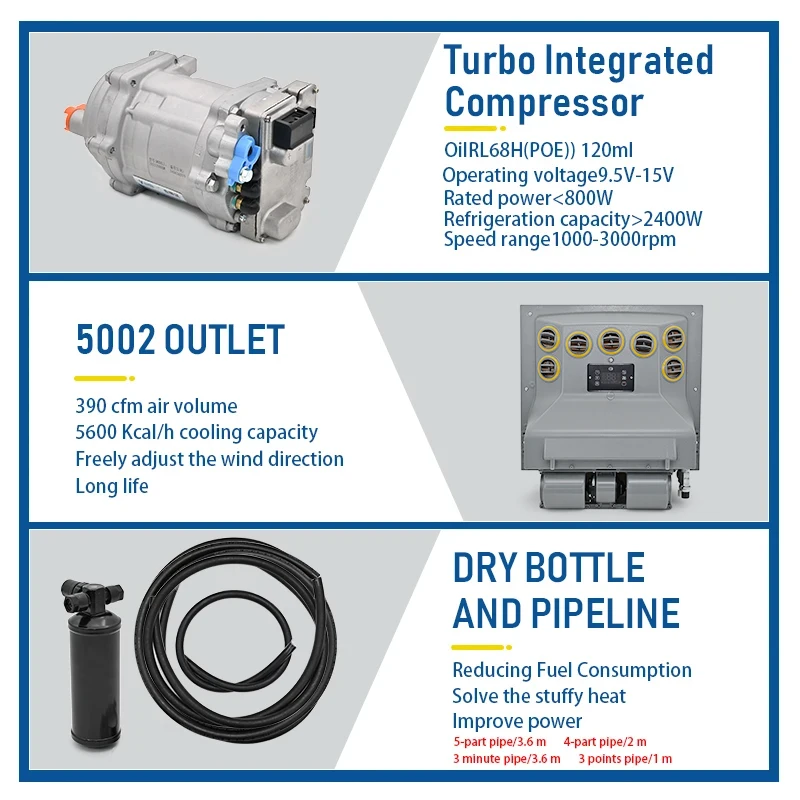

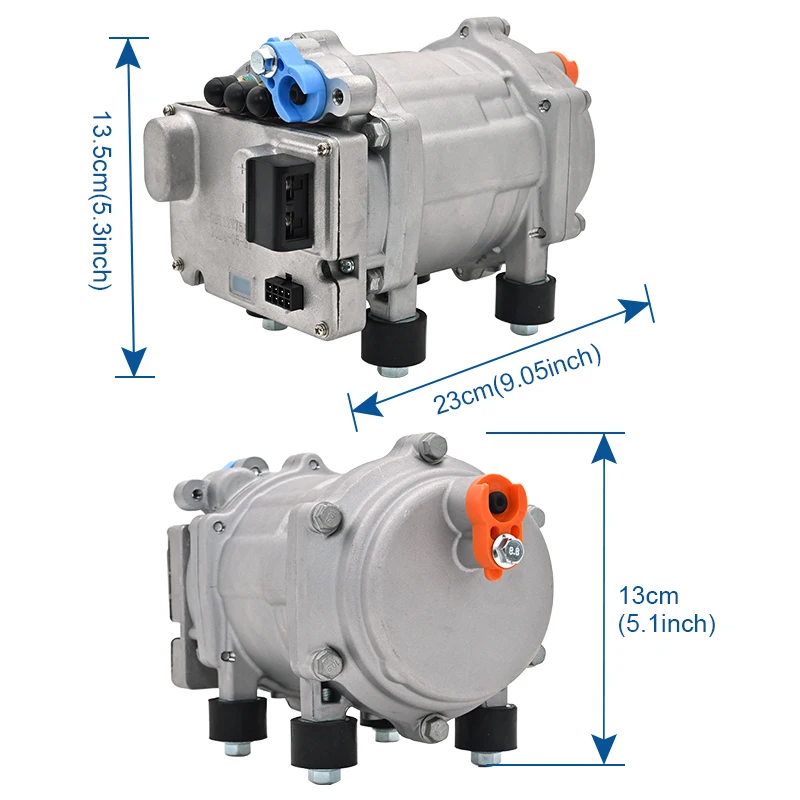

Compressor Data:
Compressor type: semi-hermetic horizontal scroll compressor
Material: aluminium alloy
VoltageDC-12V
Displacement20cc/r
OilRL68H(POE)) 120ml
Refrigerant (Gas)R134a
Operating voltage9.5V-15V
Variable frequency voltage4V-9V
Rated power<800W
Refrigeration capacity：2200W-2600W
Speed range1000-3200rpm
Overcurrent protection80A
COP3.3
Max Noise<70dB(A)
Suction pipe inner size∅18.3mm
Discharge pipe inner size∅15.5mm
Led blinking：
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.
