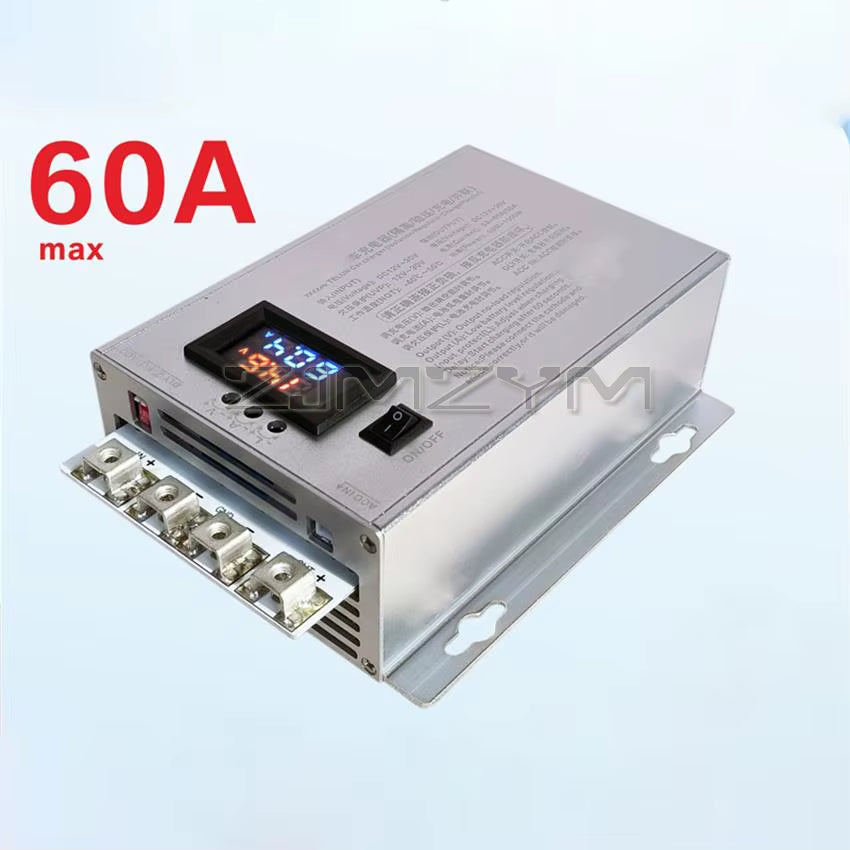

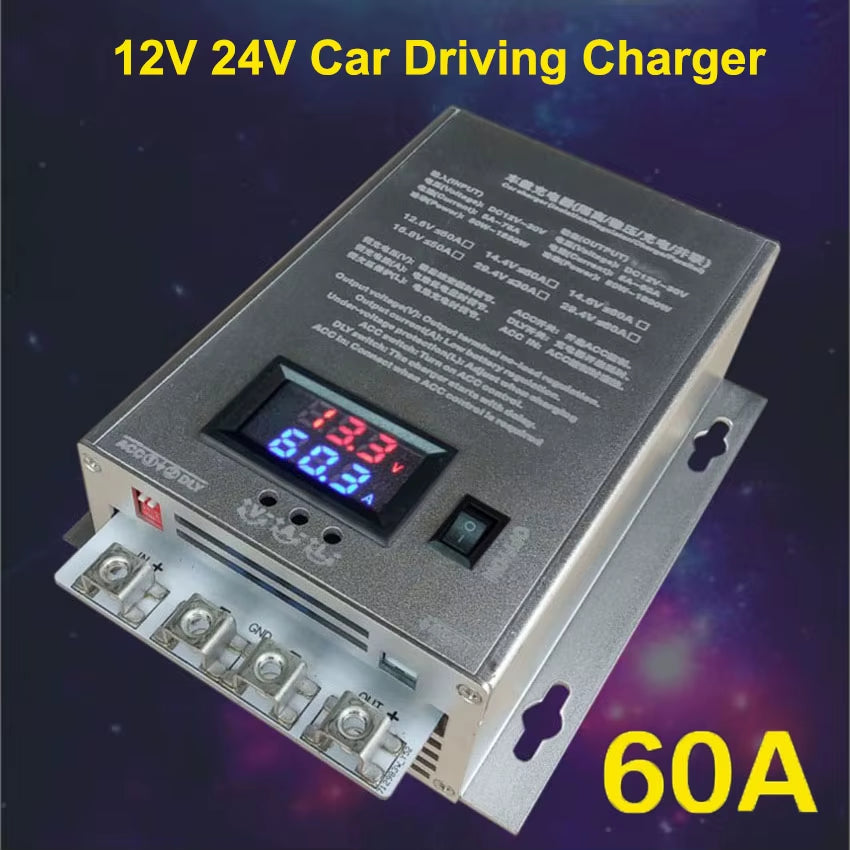

60A Controller Caravan Camper RV Lithium Battery Energy Storage Batter

€347,51

Color 24V Charged 14V 24V Charge 14.6V 12V Charge 14V 24V Charge 12.6V 12V Charge 12.6V 12V Charge 14.6V

Notice:

when the parcel arrived to your customs , please pay the tax and pick up

the parcel,

we are not responsible for any customs duty or import tax

if your place is remote ,then need to pay 48usd .

Specifications:

Name：60A traveling charger

Parameter:

Maximum power: 12V model 900w, 24V model 1800w

Input voltage: DC10～30V(automatic adaptation)

Input current: ≤80A (automatic adaptation)

Output voltage: DC10～30V(manual adjustment)

Output current: 5A～60A (manual adjustment)

Conversion efficiency：96%

Undervoltage protection: DC10~30V (manually adjustable to protect the main battery)

Delayed start: 60 seconds (autonomous on or off)

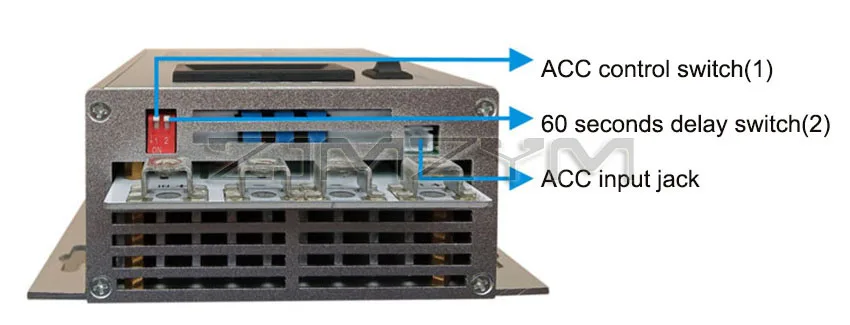

ACC start: autonomous connection, on or off.

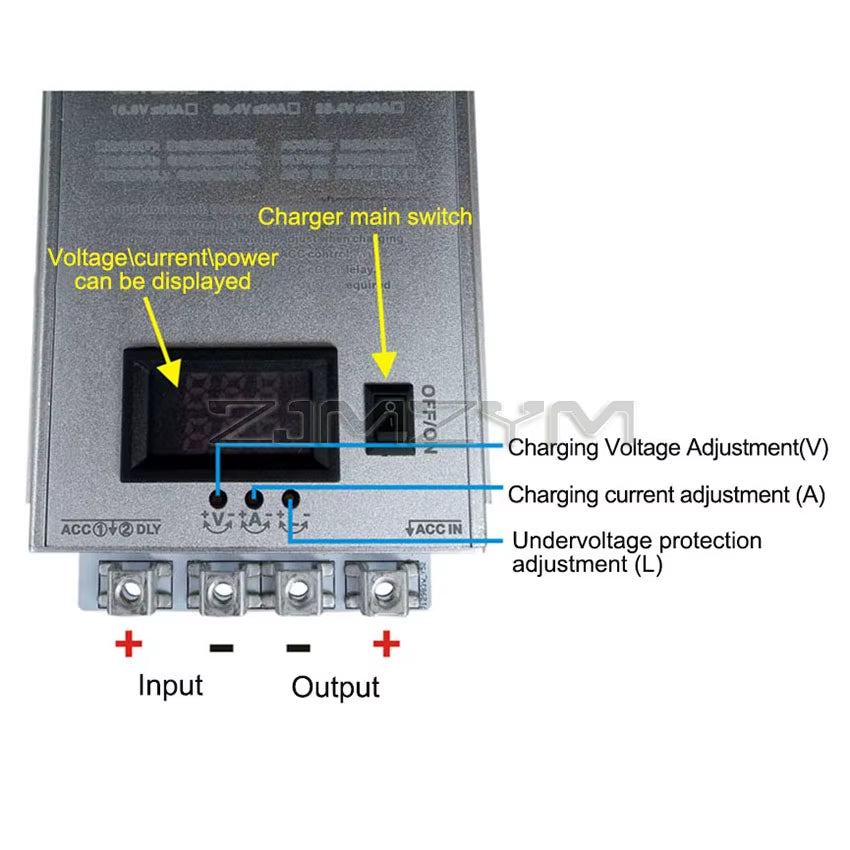

Display: display charging voltage fixed display, charging current and charging power switching display.

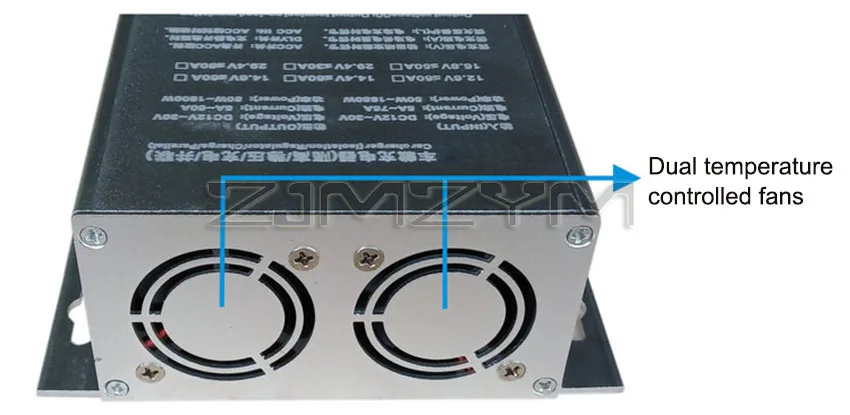

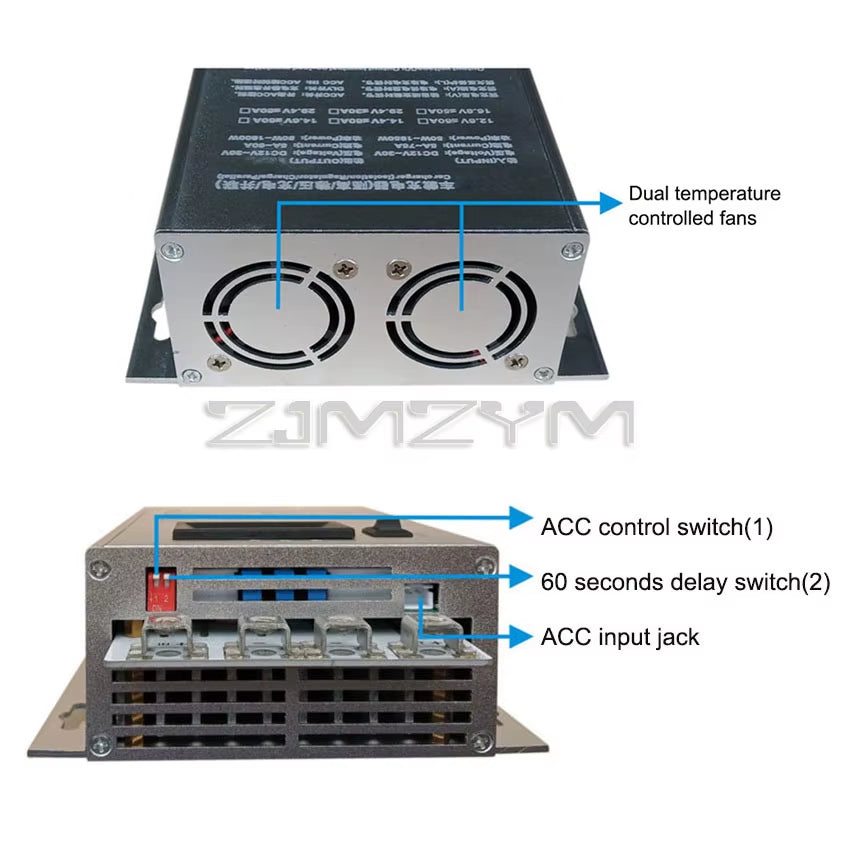

Fan cooling: temperature-controlled dual fans

High-temperature protection: Main board > 85 ℃ shut down the output (after the temperature is lowered, it will be restored automatically).

Short-circuit protection: short-circuit output, stop output, short-circuit lifted, automatic recovery.

Reverse positive and negative polarity: damage (charger scrapped)

Ambient temperature: -40°C~+50°C

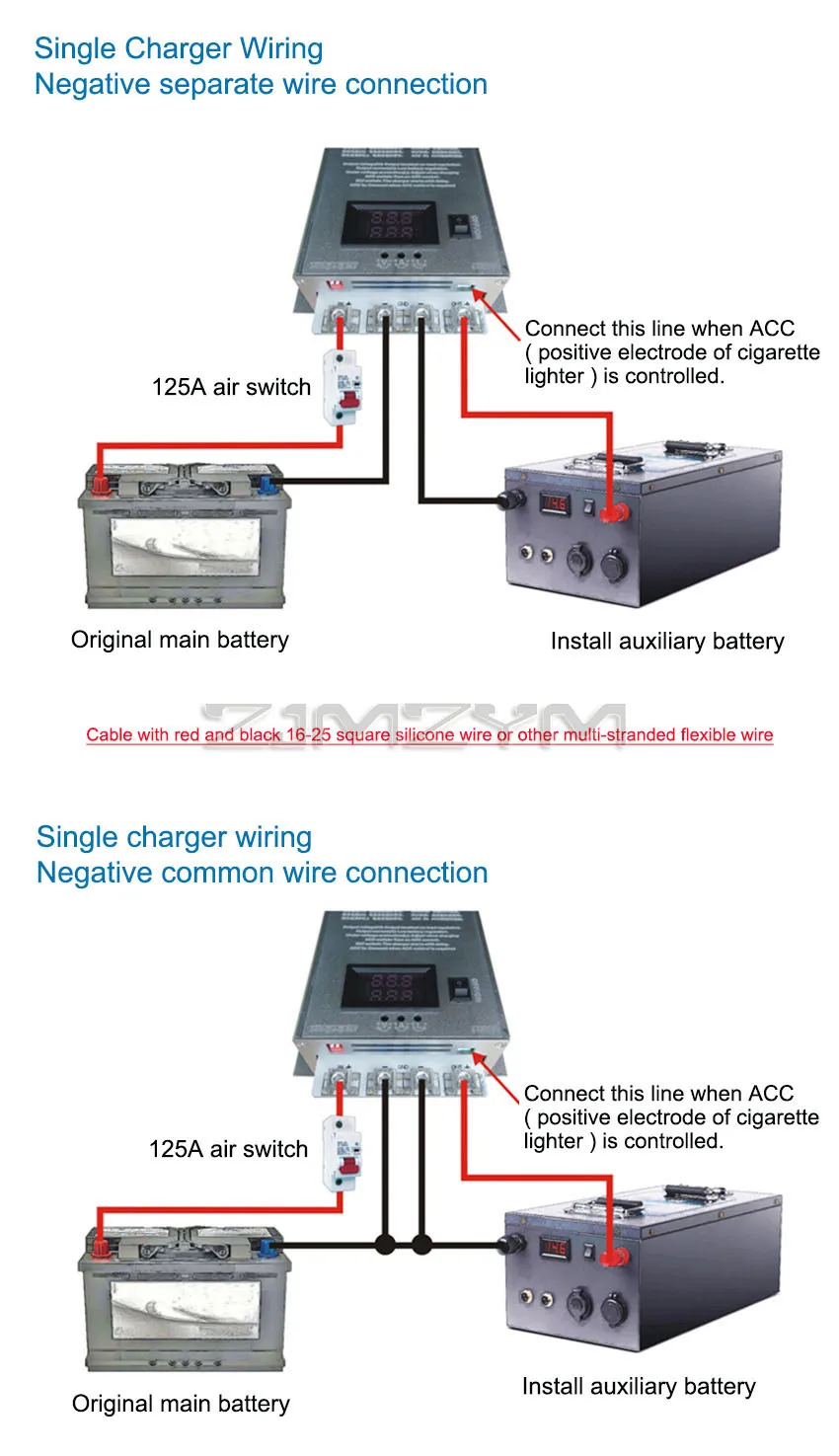

Wire selection:

6AWG silicone wire, 16 square welding cable

Choose red as positive pole

Select black as negative pole

If the length of the wire is more than 5 meters, you need to increase the square of the wire.

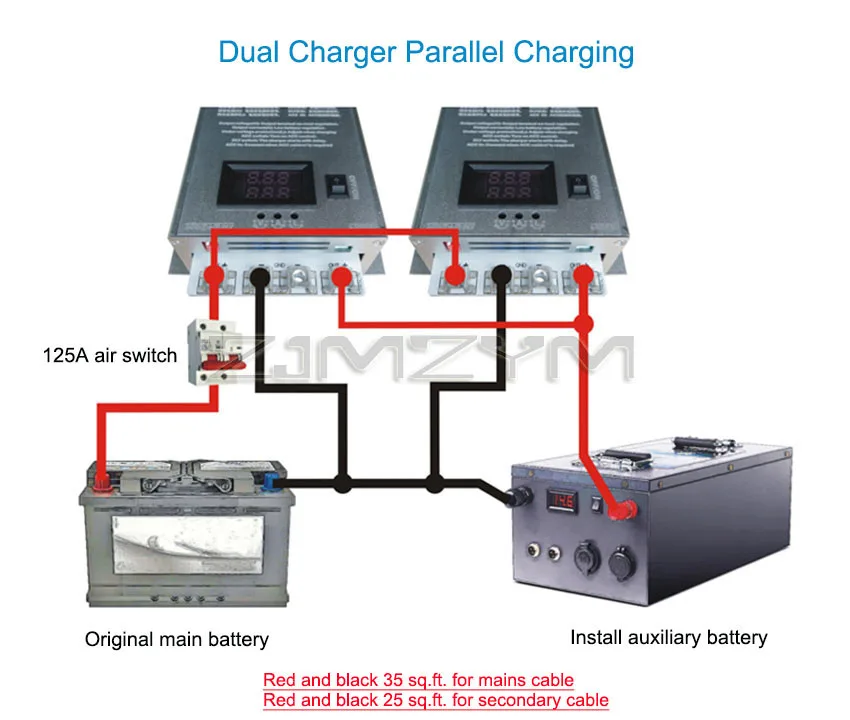

Picture showing:
